Product Summary

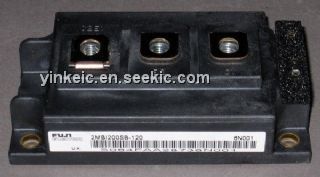

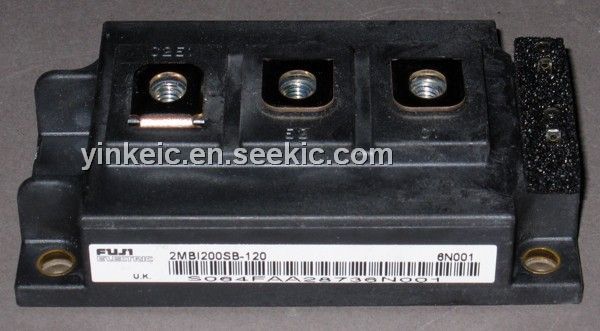

The 2MBI200SB-120 is a Fuji IGBT Module. The applications of the 2MBI200SB-120 are Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines, such as Welding machines.

Parametrics

2MBI200SB-120 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 1200V; (2)Gate-Emitter Voltage VGES: ±20V; (3)collector current IC: 200A;(4) collector current ICP (1ms): 400A; (5)Collector Power Dissipation Pc: 1500W ; (6)Operating ambient temperature Tj: +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8) Isolation Voltage(AC.1min) Visol: 2500V.

Features

2MBI200SB-120 features: (1)High speed switching; (2)Voltage Drive; (3)Low Inductance module structure.

Diagrams

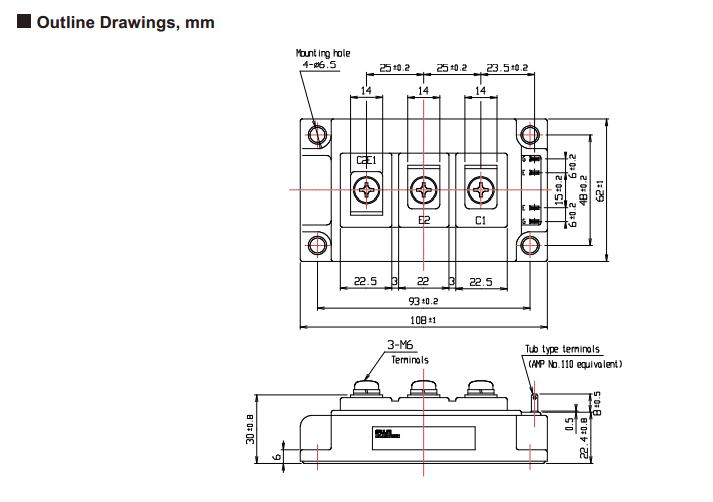

2MBI200SB-120 dimension figure
