Product Summary

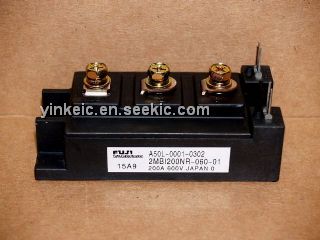

The 2MBI200NR-060-01 is a Fuji IGBT Module. The applications of the 2MBI200NR-060-01 are High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.

Parametrics

2MBI200NR-060-01 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 600V; (2)Gate-Emitter Voltage VGES: ±20V; (3)collector current IC: 200A;(4) collector current ICP (1ms): 400A; (5)Collector Power Dissipation Pc: 780W ; (6)Operating ambient temperature Tj: +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8) Isolation Voltage(AC.1min) Visol: 2500V.

Features

2MBI200NR-060-01 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (~3 Times Rated Current)

Diagrams

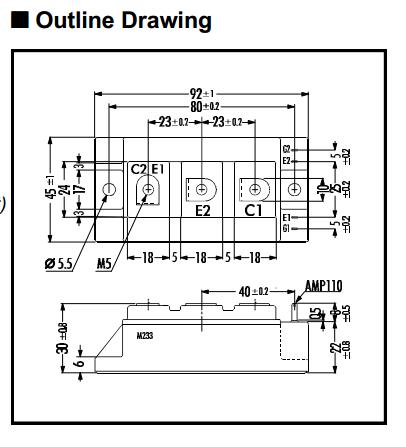

2MBI200NR-060-01 dimension figure
