Product Summary

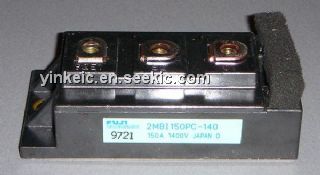

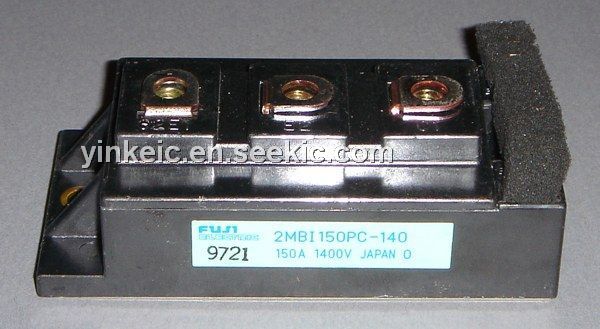

The 2MBI150PC-140 is a Fuji IGBT Module. The applications of the 2MBI150PC-140 are General purpose inverters, AC servo systems (Drive unit), UPS (Uninterruptible Power Supply).

Parametrics

2MBI150PC-140 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 1400V; (2)Gate-Emitter Voltage VGES: ±20V; (3)collector current IC: 150A;(4) collector current ICP (1ms): 300A; (5)Collector Power Dissipation Pc: 1100W ; (6)Operating ambient temperature Tj: +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8) Isolation Voltage(AC.1min) Visol: 2500V.

Features

2MBI150PC-140 features: (1)Small temperature dependence of the turn-off switching loss; (2)Easy to connect in parallel; (3)Wide RBSOA (square up to 2 times of rated current) and high short-circuit withstand capability; (4)Low loss and soft-switching (reduction of EMI noise).

Diagrams

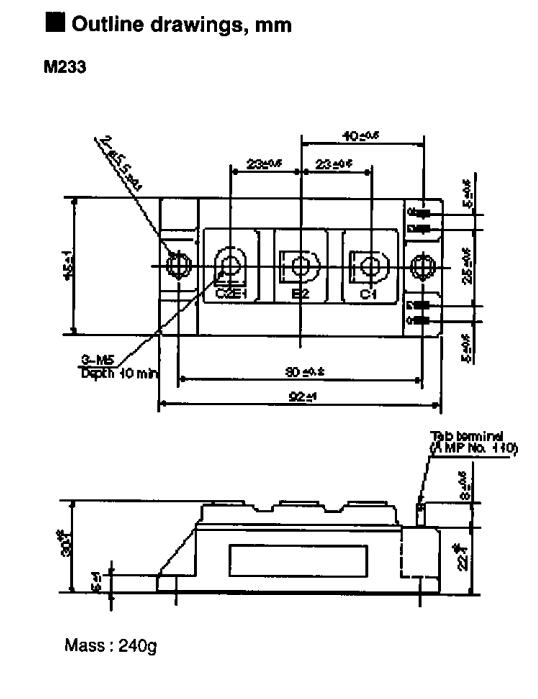

2MBI150PC-140 dimension figure
