Product Summary

The 1MBI600PX-140 is a Fuji IGBT Module. The applications of the 1MBI600PX-140 are High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.

Parametrics

1MBI600PX-140 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 1400V; (2)Gate-Emitter Voltage VGES: ±20V; (3)collector current IC (25℃/80℃): 800/600A; (4)Max. Power Dissipation Pc: 4100W ; (5)Operating ambient temperature Tj: +150℃; (6)Storage temperature TSTG: -40℃ to +125℃; (8)Isolation Voltage(AC.1min) Visol: 2500V.

Features

1MBI600PX-140 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance.

Diagrams

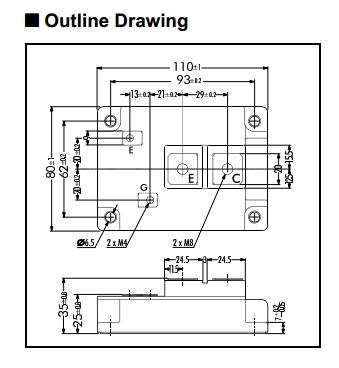

1MBI600PX-140 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
1MBI600PX-140
1MBI600PX-140

Other


Data Sheet

Negotiable
