Product Summary

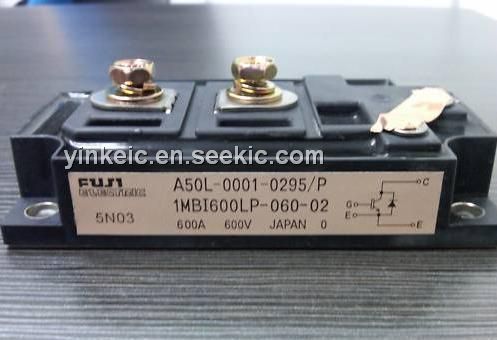

The 1MBI600LP-060-02 is a Fuji IGBT Module. The applications of the 1MBI600LP-060-02 are Inverter for Motor Drive, AC.DC Servo Drive Amplifier, Uninterruptible Power Supply and Industrial Machines, such as Welding Machines.

Parametrics

1MBI600LP-060-02 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 600V; (2)Gate-Emitter Voltage VGES: ±20V; (3)collector current IC: 600A; (4) Max. Power Dissipation Pc: 2000W ; (5) Operating ambient temperature Tj: +150℃; (6)Storage temperature TSTG: -40℃ to +125℃; (8)Net. Weight: 370g; (9)Isolation Voltage(AC.1min) Visol: 2500V.

Features

1MBI600LP-060-02 features: (1)High Speed Switching; (2)Voltage Drive; (3)Low Inductance Module Structure.

Diagrams

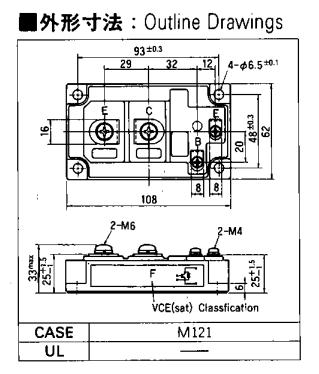

1MBI600LP-060-02 dimension figure
