Product Summary

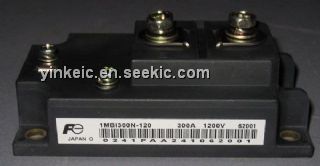

The 1MBI300N-120 is a Fuji IGBT Module. The applications of the 1MBI300N-120 are High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.
Parametrics
1MBI300N-120 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 1200V; (2)Gate-Emitter Voltage VGES: ±20V; (3)collector current IC: 300A; (4) Max. Power Dissipation Pc: 2100W ; (5) Operating ambient temperature Tj: +150℃; (6)Storage temperature TSTG: -40℃ to +125℃; (8)Net. Weight: 370g; (9)Isolation Voltage(AC.1min) Visol: 2500V.
Features
1MBI300N-120 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (4~5 Times Rated Current).

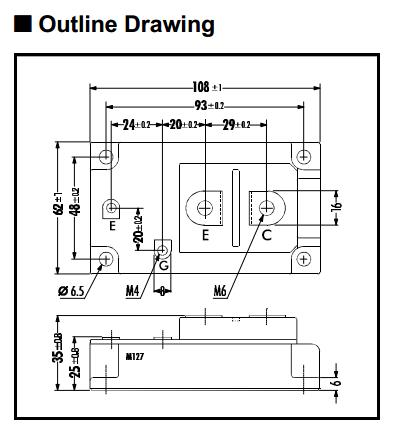

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 1MBI300N-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
