Product Summary

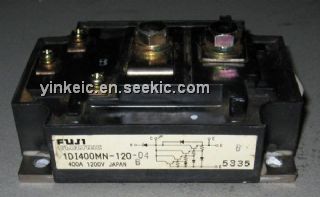

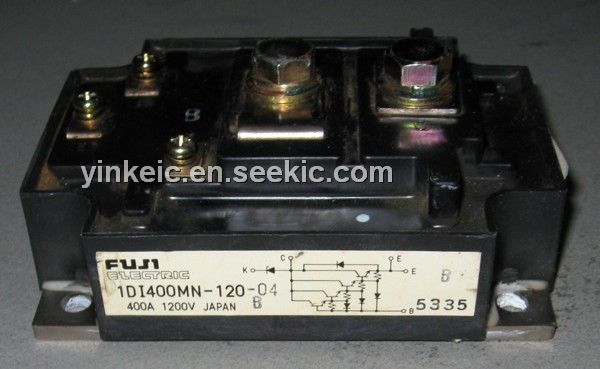

The 1DI400MN-120-04 is a Fuji Power Transistor Module. The applications of the 1DI400MN-120-04 are General Purpose Inverter, Uninterruptible Power Supply, Servo & Spindle Drive for NC Machine Tools.

Parametrics

1DI400MN-120-04 absolute maximum ratings: (1)VCBO: 1200V; (2)VCEO: 1200V; (3)VCEO(SUS): 900V; (4)VEBO: 10V; (5)IC: 400A; (6)ICP(1ms): 800A; (7)PC: 3000W(one Tansistor); (8)Junction Temperature(Tj): +150℃; (9)Storage Temperature (Tstg): -40℃ to +125℃; (10)Weight: 430g; (11)Visol(AC. 1min): 2500V.

Features

1DI400MN-120-04 features: (1)High Voltage; (2)Including Free Wheeling Diode; (3)Excellent Safe Operating Area; (4) Insulated Type.

Diagrams

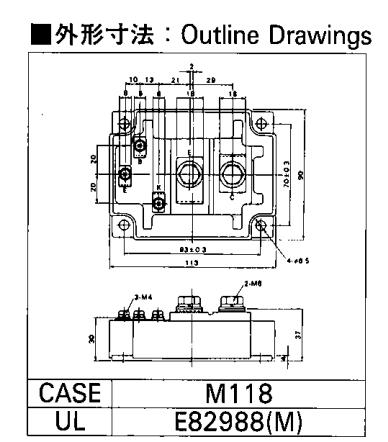

1DI400MN-120-04 dimension figure
