Product Summary
The 1DI200ZP-120 is a Fuji Power Transistor Module. The applications of the 1DI200ZP-120 are General Purpose Inverter, Uninterruptible Power Supply, Servo & Spindle Drive for NC Machine Tools.
Parametrics
1DI200ZP-120 absolute maximum ratings: (1)VCBO: 1200V; (2)VCEO: 1200V; (3)VEBO: 10V; (4)IC: 200A; (5)ICP(1ms): 400A; (6)PC: 1400W(one Tansistor); (7)Junction Temperature(Tj): +150℃; (8)Storage Temperature (Tstg): -40℃ to +125℃; (9)Weight: 430g; (10)Visol(AC. 1min): 2500V.
Features
1DI200ZP-120 features: (1)High DC Current Gain; (2)Including Free Wheeling Diode; (3)Excellent Safe Operating Area; (4) Insulated Type.

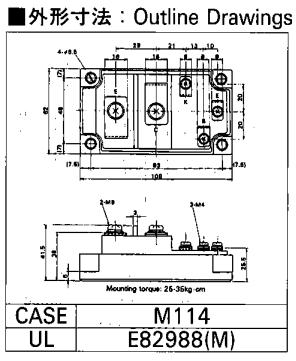

Diagrams
