Product Summary

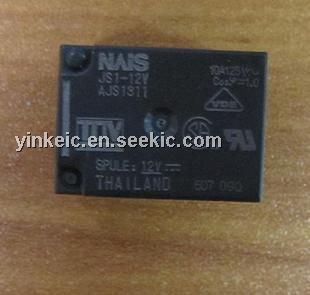

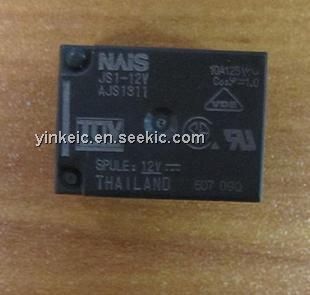

The JS1-12V is an ULTRA-MINIATURE PC BOARD TYPE POWER RELAY. The applications of the JS1-12V are Home appliances Air conditioner, heater, Automotive Power-window, car antenna, door-lock, Office machinesPPC, facsimile, Vending machines.
Parametrics
JS1-12V absolute maximum ratings: (1)Nominal voltage: 12VDC; (2)Pick-up voltage(at 20℃): 8.4VDC; (3)Drop-out voltage(at 20℃): 1.2VDC; (4)Coil resistance(at 20℃): 400Ω; (5)Nominal operating current(at 20℃): 30mA; (6)Nominal operating power(at 20℃): 360mW; (7)Max. allowable voltage(at 85℃): 130%V of nominal voltage.
Features
JS1-12V features: (1)Ultra-miniature size with universal terminal footprint; (2)High contact capacity: 10 A; (3)Class B coil insulation type available; (4)TV-5 type available: 1 Form A type → TV-5, 1 Form C type → TV-5 (N.O.side only); (5)VDE, TUV also approved; (6)Sealed construction for automatic cleaning.

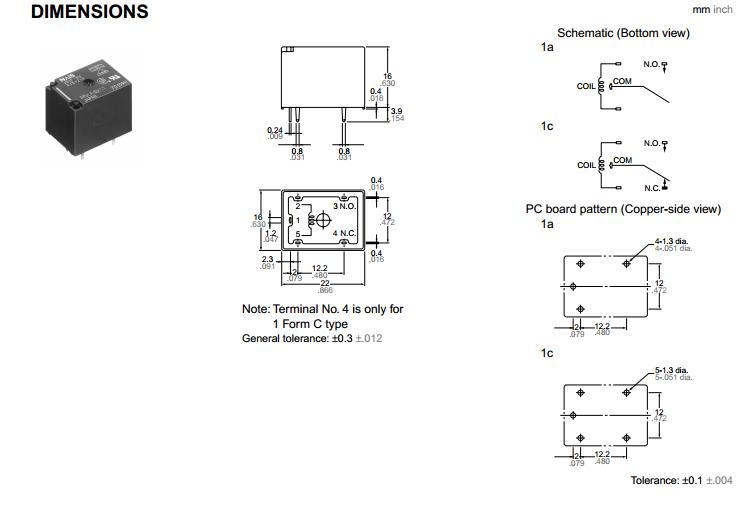

Diagrams
