Product Summary

The G6H-2-12V is an Ultracompact, Ultrasensitive DPDT Relay.

Parametrics

G6H-2-12V absolute maximum ratings: (1)Rated voltage: 12VDC; (2)Rated current: 11.7mA; (3)Coil resistance: 1028Ω; (4)Must operate voltage: 75% max.of rated voltage; (5)Must release voltage: 10% min.of rated voltage; (6)Max. voltage: 200% of rated voltage at 23℃; (7)Power consumption: Approx. 140 mW.

Features

G6H-2-12V features: (1)Compact size and low 5-mm profile; (2)Low power consumption (140 mW for single-side stable, 100 to 300 mW for latching type) and high sensitivity; (3)Low thermoelectromotive force; (4)Low magnetic interference enables high-density mounting; (5)Single- and double-winding latching types also available.

Diagrams

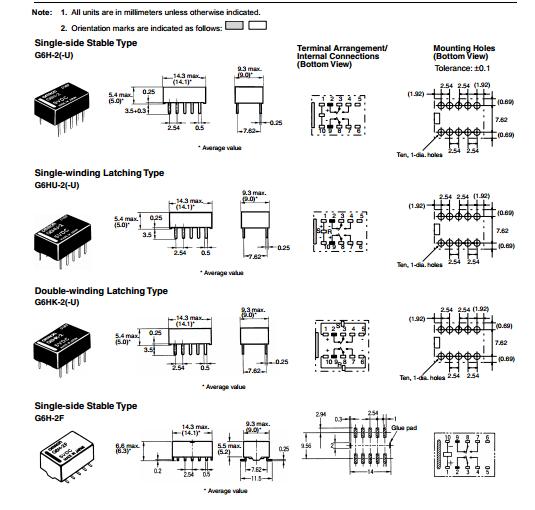

G6H-2-12V dimension figure
