Product Summary

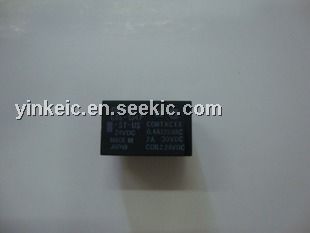

The G6E-134P-5V is a Low Signal Relay.

Parametrics

G6E-134P-5V absolute maximum ratings: (1)Rated voltage: 5VDC; (2)Rated current: 40mA; (3)Coil resistance: 125Ω; (4)Pick-up voltage: 70% max.of rated voltage; (5)Dropout voltage: 10% min.of rated voltage; (6)Max. voltage: 190% of rated voltage at 23℃; (7)Power consumption: Approx. 200 mW.

Features

G6E-134P-5V features: (1)Subminiature 7.87 H x 9.91 W x 16 L mm; (2)High sensitivity with pick-up coil power of 98 mW; (3)Surge withstand voltage meets FCC Part 68 requirements; (4)Unique moving loop armature reduces relay size, magnetic interference, and contact bounce time; (5)Bifurcated crossbar contact assures high reliability; (6)Single and Dual coil latching versions available; (7)Fully sealed construction; (8)RoHS Compliant.

Diagrams

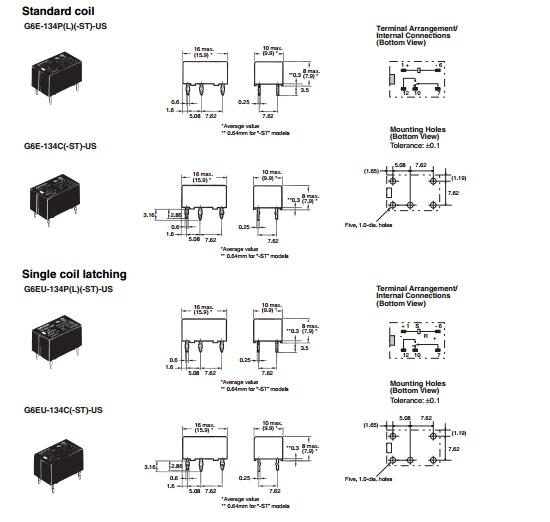

G6E-134P-5V dimension figure
