Product Summary

The G6D-1A-12VDC is a PCB Relay.

Parametrics

G6D-1A-12VDC absolute maximum ratings: (1)Rated voltage: 12VDC; (2)Rated current: 16.7mA; (3)Coil resistance: 720Ω; (4)Must operate voltage: 70% max.of rated voltage; (5)Must release voltage: 10% min.of rated voltage; (6)Max. voltage: 130% of rated voltage; (7)Power consumption: Approx. 200 mW.

Features

G6D-1A-12VDC features: (1)Reduced bottom area (45% smaller than the G6B’s bottom area) ideal for high-density mounting; (2)Switches 5 A at 250 VAC/30 VDC; (3)Allows 300,000 operations with a 2-A load at 250 VAC or 30 VDC; (4)Actual load switching capability equals the G6B’s capability; (5)Washable construction.

Diagrams

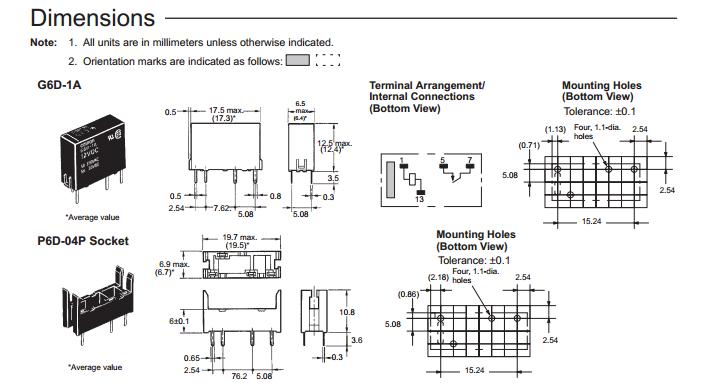

G6D-1A-12VDC dimension figure
