Product Summary

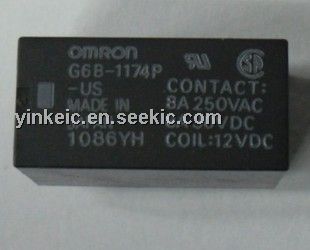

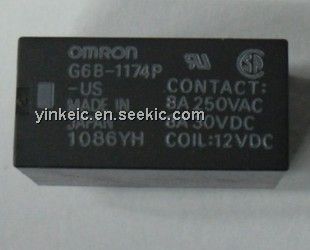

The g6b-1174p-us is a sub-miniature relay that switches up to 5A.

Parametrics

g6b-1174p-us absolute maximum ratings: (1) Rated carry current: 5A; (2) Max. switching voltage: 380 VAC, 125 VDC; (3) Max. switching current: 5A; (4) Max. switching power: 2,000VA, 150W; (5) Failure rate (reference value) : ) 10 mA at 5VDC.

Features

g6b-1174p-us features: (1) Sub-miniature: 20 x 10 x 10 mm (L x W x H); (2) Low power consumption: 200mW; (3) Unique moving loop armature reduces relay size, magnetic interference, and contact bounce time; (4) Single- and double-winding latching types also available.

Diagrams

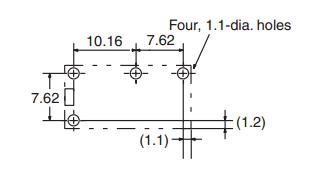

G6B-1174P-US  Dimension
