Product Summary

The G5V-2-12V is an OMRON PCB Relay. It is a Miniature Relay for Signal Circuits.

Parametrics

G5V-2-12V absolute maximum ratings: (1)Rated voltage: 12VDC; (2)Rated current: 41.7 mA; (3)Coil resistance: 288Ω; (4)Coil inductance(H) (ref. value): 0.47 (Armature OFF), 0.74 (Armature ON); (5)Must operate voltage: 75% max. of rated voltage; (6)Must release voltage: 5% min. of rated voltage; (7)Max. voltage: 120% of rated voltage at 23℃; (8)Power consumption: Approx. 500 mW.

Features

G5V-2-12V features: (1)Wide switching power of 10 μA to 2 A; (2)High dielectric strength coil-contacts:1,000 VAC; open contacts: 750 VAC; (3)Conforms to FCC Part 68 requirements; (4)Ag + Au clad bifurcated crossbar contacts and fully sealed for high contact reliability; (5)New 150-mW relays with high-sensitivity.

Diagrams

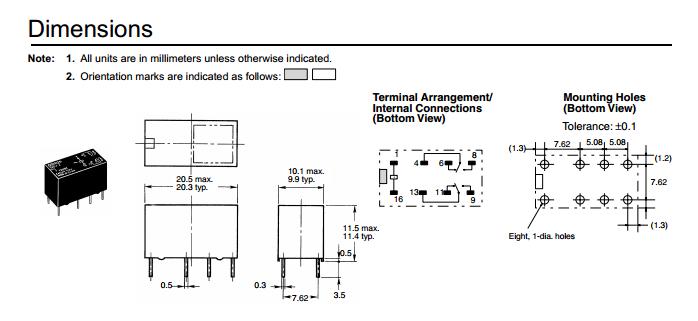

G5V-2-12V dimension figure
