Product Summary

The G5V-1-H1-12V is an OMRON Low Signal Relay. It is a Ultra-miniature, Highly Sensitive SPDT Relay for Signal Circuits.

Parametrics

G5V-1-H1-12V absolute maximum ratings: (1)Rated voltage: 12VDC; (2)Rated current: 12.5 mA; (3)Coil resistance: 960Ω; (4)Coil inductance(H) (ref. value): 0.85 (Armature OFF), 1.63 (Armature ON); (5)Must operate voltage: 80% max. of rated voltage; (6)Must release voltage: 10% min. of rated voltage; (7)Max. voltage: 200% of rated voltage at 23℃; (8)Power consumption: Approx. 150 mW.

Features

G5V-1-H1-12V features: (1)High sensitivity: 150 mW nominal power consumption; (2)Small size at 10 H x 7.5 W x 12.5 L mm; (3)Switches from 1 mA to 1 A; (4)Conforms to FCC part 68 requirements for coil to contacts; (5)Fully-sealed construction; (6)Ideal for use in telecommunications, security, and computer/peripheral equipment; (7)RoHS Compliant.

Diagrams

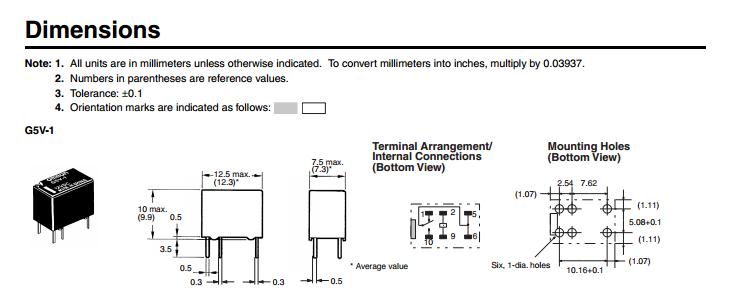

G5V-1-H1-12V dimension figure
