Product Summary

The G5V-1-5V is an OMRON PCB Relay. It is a Ultra-miniature, Highly Sensitive SPDT Relay for Signal Circuits.

Parametrics

G5V-1-5V absolute maximum ratings: (1)Rated voltage: 5VDC; (2)Rated current: 30 mA; (3)Coil resistance: 167Ω; (4)Coil inductance(H) (ref. value): 0.15 (Armature OFF), 0.29 (Armature ON); (5)Must operate voltage: 80% max. of rated voltage; (6)Must release voltage: 10% min. of rated voltage; (7)Max. voltage: 200% of rated voltage at 50℃, 160% at 70℃; (8)Power consumption: Approx. 150 mW.

Features

G5V-1-5V features: (1)Ultra-miniature at 12.5 x 7.5 x 10 mm (L x W x H); (2)Wide switching capacity of 1 mA to 1 A; (3)High sensitivity: 150 mW nominal coil power; (4)Plastic-sealed construction; (5)International 2.54-mm terminal pitch; (6)Conforms to FCC Part 68 requirements for coil to contacts.

Diagrams

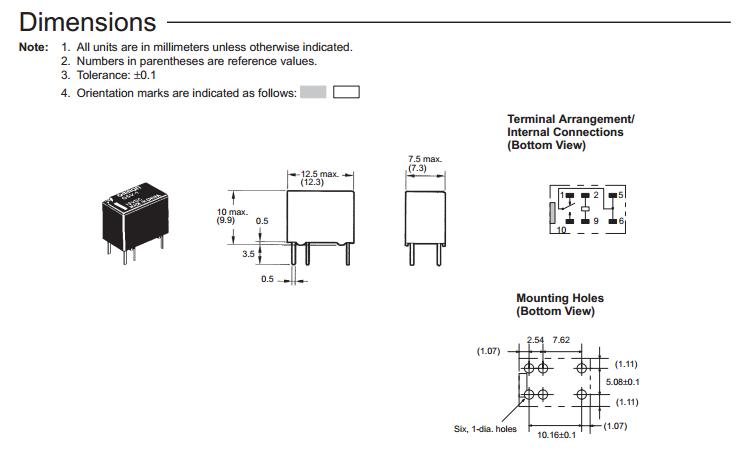

G5V-1-5V dimension figure
