Product Summary

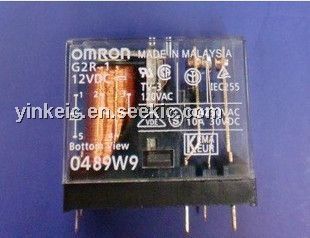

The G2R-1-12V is an OMRON Power PCB Relay.

Parametrics

G2R-1-12V absolute maximum ratings: (1)Rated voltage: 12VDC; (2)Rated current: 43.60mA; (3)Coil resistance: 275Ω; (4)Coil inductance (H) (ref. value): 1.15(Armature OFF), 2.29(Armature ON); (5) Pick-up voltage: 70% max. of rated voltage; (6) Dropout voltage: 15% max. of rated voltage; (7)Max. voltage: 110% of rated voltage at 70℃; (8)Power consumption: Approx.. 530mW.

Features

G2R-1-12V features: (1)Creepage distance of 8.0 mm (0.31) min. between coil and contact; (2)Dual-winding latching type available; (3)Plug-in and quick-connect terminals available; (4)High sensitivity (360 mW) and high capacity (16 A) types available; (5)Highly stable magnetic circuit for latching endurance and excellent resistance to vibration and shock; (6)Safety-oriented design assuring high surge resistance: 10,000 V min. between coil and contacts; (7)UL, CSA approved, marked with CE.

Diagrams

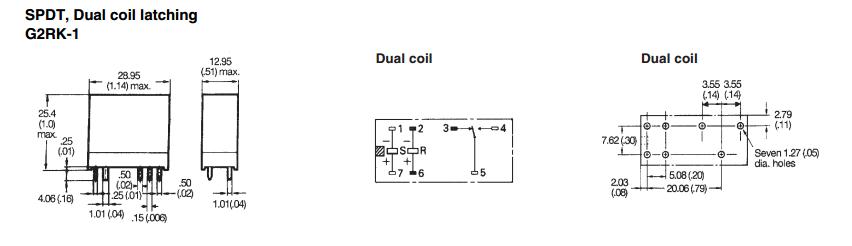

G2R-1-12V dimension figure
