Product Summary

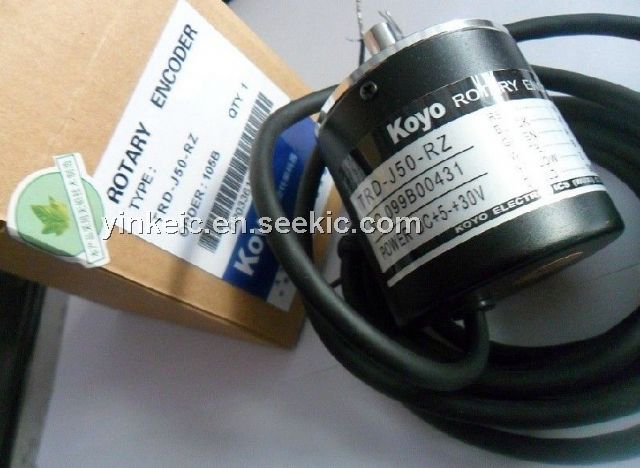

The TRD-J600-RZ is a INCREMENTAL SHAFT ENCODER.

Parametrics

TRD-J600-RZ absolute maximum ratings: (1)Pulse per Revolution: Up to 1024 P/R; (2)Supply Voltage: 5~30Vdc TTL & 5Vdc Line Driver; (3)Output Format: Dual Square Wave in Quadrature with Index; (4)Output Option: TTL Output, Line Driver; (5)Frequency Response: 200 KHz; (6)Rise and Fall Time: ≤1μs (When cable length is 1m); (7)Insulation Resistance: ≥50MΩ; (8)Storage temperature: -25℃ to +85℃; (9)Operating temperature: -10℃ to +70℃.

Features

TRD-J600-RZ features: (1)2.0" (50mm) O.D.m Medium-duty designed, NEMA 12/IP54; (2)315"(8mm) Solid Shaft, Standard Shaft Protection Scraper; (3)Up to 1024 P/R; (4)Strong in vibration and shock using all Metal disks; (5)5-30Vdc TTL and 5Vdc Line Driver Output; (6)Competitive Low Prices

Diagrams

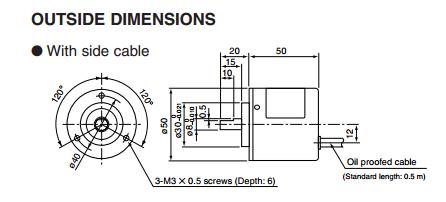

TRD-J600-RZ dimension figure
