Product Summary
The cqm1h-cpu21 is a programmable controller. The rack-less modular design of the cqm1h-cpu21 lets us customie your control system by adding inner boards for advanced functions, as well as specilized I/O and communications modules. The cqm1h-cpu21 offers the most flexibility of all PLC systems in its class.
Parametrics
cqm1h-cpu21 absolute maximum ratings: (1) Input voltage: 24VDC +10%/15%; (2) Input current: 10mA for IN04/05, 6mA for the rest (24VDC) ; (3) Input impedpedance: 2.2kΩ for IN04/05, 3.9kΩ for the rest; (4) Operatingvoltage: 17.4VDC min.(ON voltage) , 5VDC max. (OFF voltage) .
Features
cqm1h-cpu21 features: (1) 4 different base CPUs to choose from;16DC inputs built in;expands up to 512 points; (2) No separate backplane required; (3) Inner Boards allow customized configuration of the CPU; (4) Serial communications inner board supports protocol macro feature for communication with third-party serial device; (5) Supports all existing and new CQM1I/O and specialized I/O modules; (6) Optional memory cassettes allow backup of sensitive data,provides a real-time clock; (7) Controller Link network transmits 8 kwordd ata packets at upto 2Mbps;32 nodes; (9) Advanced instruction set includes PID ,floating point; (10) CompoBus/S, SYSMACBUS and AS-interface masters support remoteI/O; (11) Up to 15.2kwords of programmemory.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

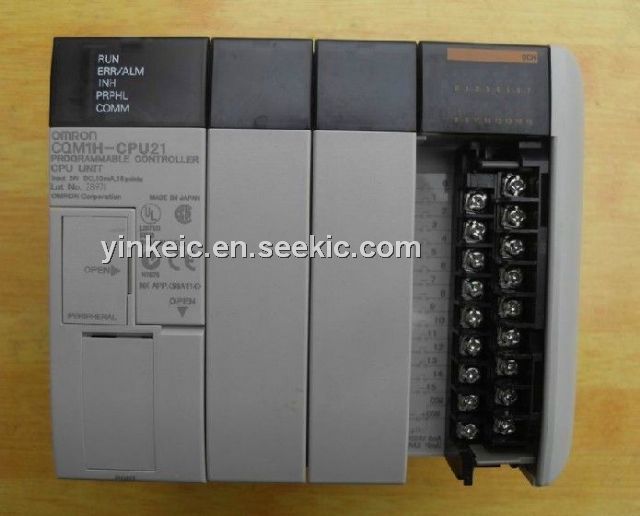

CQM1H-CPU21 |
Omron Industrial |
Sensor Hardware & Accessories CPU |
Data Sheet |
|
|
|||||||||
