CPM1A-30CDT-D

CPM1A-30CDT-D, Micro Programmable Controller, 24 VDC, 60A, 20W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $64.50~69.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	69.00 / Piece
101 ~ 1000 :	66.50 / Piece
1001 ~ 10000 :	64.50 / Piece

PartNumber:: CPM1A-30CDT-D

Brand:: Omron Electronics LLC - OMRON | D/C: 11+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Nici's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-14

From Other Seller

Part Number:CPM1A-30CDT-D
US $64.50 - 69.00
Quantity:

piece

Product Summary

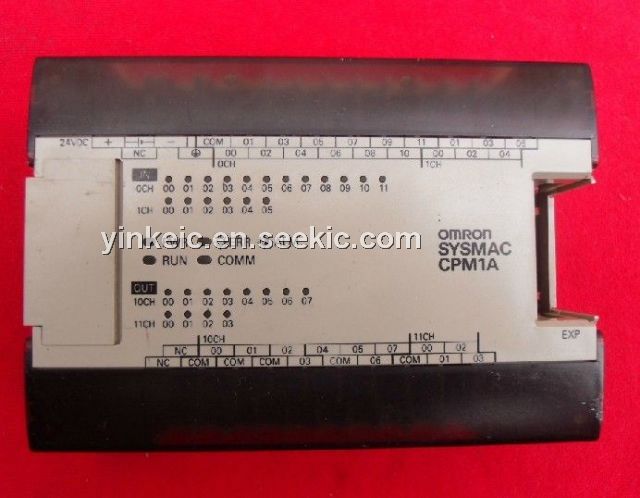

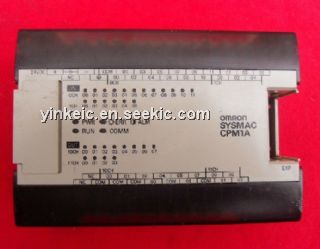

The CPM1A-30CDT-D is a Micro Programmable Controller. It solves both basic and semi-complex applications. The brick style models include DC inputs/transistor or relay outputs to meet your design requirements. The base I/O for the CPUs ranges from 10, 20, 30, and 40 I/O points with maximum expansion to 100 I/O. Specialized expansion modules include mixed analog I/O,temperature sensor inputs and serial communications.

Parametrics

CPM1A-30CDT-D absolute maximum ratings: (1)Power supply voltage/frequency: 24 VDC; (2)Operating voltage range: 20.4 to 26.4 VDC; (3)Power consumption: 20 W max.; (4)Inrush current: 60 A max.; (5)Insulation resistance: 20 MΩ min. at 500 VDC between the AC terminals and the protective earth terminal; (6)Operating Temperature: 0℃ to +55℃; (7)Storage Temperature: -20℃ to +75℃; (8)Power supply holding time: 2 ms min.; (9)CPU Weight: 500 g max.

Features

CPM1A-30CDT-D features: (1)10, 20, 30 and 40 point I/O CPUs; (2)Expandable up to 100 I/O points; (3)Peripheral communications port built in; (4)DC input models; (5)Analog expansion modules available; (6)Temperature sensor input expansion modules available; (7)Auxiliary 24 VDC supply (AC type only); (8)Relay or Transistor outputs; (9)UL, CSA, CE approvals.
