Product Summary

The CPM1A-20EDT is a Micro Programmable Controller. It solves both basic and semi-complex applications. The brick style models include AC inputs/relay outputs, DC inputs/transistor or relay outputs to meet your design requirements. The base I/O for the CPUs ranges from 10, 20, 30, and 40 I/O points with maximum expansion to 100 I/O. Specialized expansion modules include mixed analog I/O, temperature sensor inputs and serial communications.

Parametrics

CPM1A-20EDT absolute maximum ratings: (1)Power supply voltage: 24 VDC; (2)Operating voltage range: 20.4 to 26.4 VDC; (3)Power consumption: 6W max.; (4)Inrush current: 30 A max.; (5)Power supply output capacity: 200mA; (6)Operating temperature: 0℃ to +55℃; (7)Storage temperature: -20℃ to +75℃; (8)Operating humidity: 10% to 90% RH no condensation; (9)weight: 400g max.

Features

CPM1A-20EDT features: (1)10, 20, 30 and 40 point I/O CPUs; (2)Expandable up to 100 I/O points; (3)Peripheral communications port built in; (4)AC or DC input models; (5)Analog expansion modules available; (6)Temperature sensor input expansion modules available; (7)Auxiliary 24 VDC supply (AC type only); (8)Relay or Transistor outputs; (9)UL, CSA, CE approvals.

Diagrams

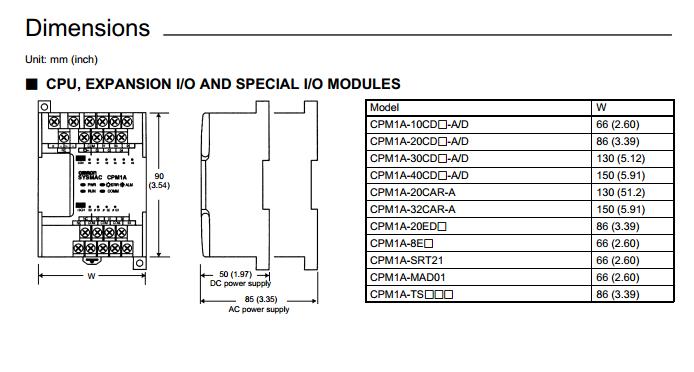

CPM1A-20EDT dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

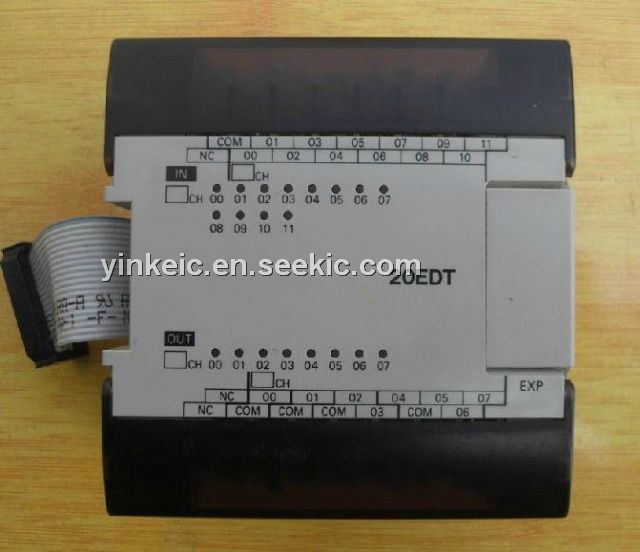

CPM1A-20EDT
CPM1A-20EDT
Omron Industrial
Controllers 20 PT., EXP. NPN
Data Sheet
0-1: $258.04
1-5: $252.30
5-10: $243.60
10-25: $234.90
CPM1A-20EDT1
CPM1A-20EDT1
Omron Industrial
Controllers 20 PT., EXP. PNP
Data Sheet
0-1: $275.84
1-5: $269.70
5-10: $260.40
10-25: $251.10
