Product Summary

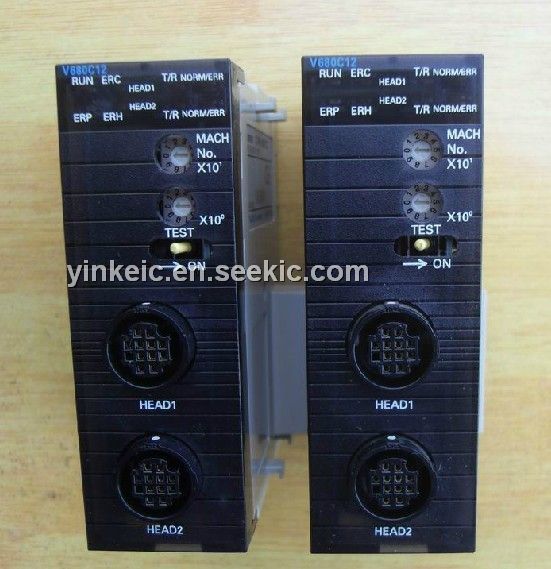

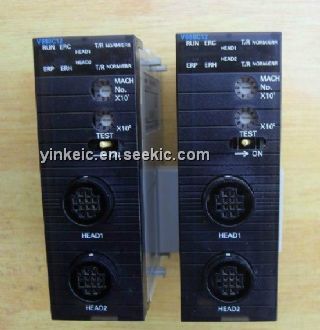

The CJ1W-V680C12 is a CJ/CS Series ID Sensor Unit.
Parametrics
CJ1W-V680C12 absolute maximum ratings: (1) Type: CJ Special I/O Unit; (2) Connected ID System: 2 Heads; (3) No. of unit numbers used: 2 unit number; (4))Current consumption: 0.32A(5V), 0.26A(24V); (5) Ambient operating temperature: -55℃ to +150℃; (6)Ambient storage temperature: -55℃ to +150℃; (7)Insulation resistance: 20 mΩ min. at 500 VDC; (8) Dielectric strength: 1,000 VAC for 1 minute; (9)Weight: 130 g max.
Features
CJ1W-V680C12 features: (1)Easy reading and writing of data by simply setting parameters in PLC memory area; (2)Simpler device configuration compared to serial communication allows faster data processing; (3)Function Block (FB) library in Ladder Program facilitates generation of communication programs.

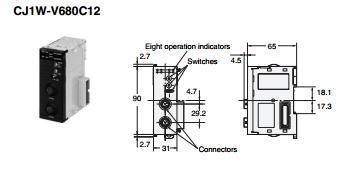

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
CJ1W-V680C12 |
CJ1 2-HEAD V680 RFID MODULE |
Data Sheet |
|
|
||||||||
