Product Summary

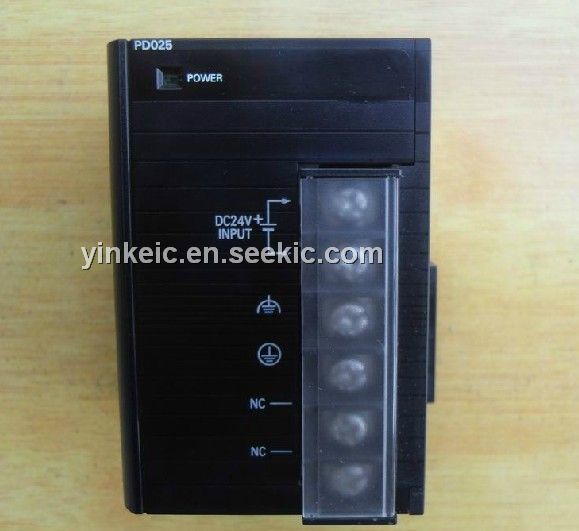

The CJ1W-PD025 is a SYSMAC CJ-series Power Supply Unit. Stable power supply is available from the CJ-series CPU Unit to each I/O Units via the dedicated bus. The most suitable Power Supply Unit can be selected among various I/O specifications and/or options.

Parametrics

CJ1W-PD025 absolute maximum ratings: (1)Supply voltage: 24 VDC; (2)Operating voltage and frequency ranges: 19.2 to 28.8 VDC; (3)Power consumption: 50 W max.; (4) Inrush current: At 24 VDC: 30 A/20 ms max. for cold start at room temperature; (5)Output capacity: 5.0 A, 5 VDC(including supply to CPU Unit); (6)Ambient storage temperature: -20℃ to +75℃; (7)Insulation resistance: 20 mΩ min. at 500 VDC; (8) Weight: 5 kg max..

Features

CJ1W-PD025 features: (1)The replacement notification function can prevent an overflow of the system due to the power lifetime. (CJ1W-PA205C only); (2)Power Supply Unit provides wide variations according to the system scale up to maximum 25 W; (3)Power Supply Unit provides wide variations according to the power supply (100 to 240 V AC/ 24 V DC) status; (4)The output contact during operation enables you to check the CPU operation. (CJ1W-PA205R only).

Diagrams

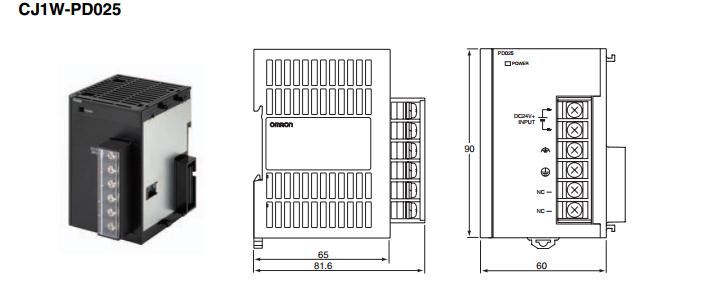

CJ1W-PD025 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CJ1W-PD025
CJ1W-PD025
Omron Industrial
Linear and Switching Power Supplies 24VDC Pwr Spl No RUN Output 5V-5A 24V-.8A
Data Sheet
0-1: $182.41
1-2: $178.35
