Product Summary

The CJ1W-ID232 is a SYSMAC CJ-series Input Unit. It is a Wide Range of Basic Input Units for High Speed Input and Different Applications.

Parametrics

CJ1W-ID232 absolute maximum ratings: (1)Rated Input Voltage: 24 VDC; (2)Rated Input Voltage Range: 20.4 to 26.4 VDC; (3)Input Impedance: 5.6 kΩ; (4)Input Current: 4.1 mA typical (at 24 VDC); (5)ON Voltage/ON Current: 19.0 VDC min./3 mA min.; (6)OFF Voltage/OFF Current: 5 VDC max./1 mA max.; (7)Insulation Resistance: 20 MΩ between external terminals and the GR terminal (100 VDC); (8)Internal Current Consumption: 90 mA max.; (9)Weight: 70 g max.

Features

CJ1W-ID232 features: (1)High-speed input models are available, meeting versatile applications; (2)ON Response Time: 15μs, OFF Response Time: 90μs; (3)Use 24-VDC, 100-VAC, and 200-VAC models to connect to devices with different types of outputs; (4)The 24-VDC models can be connected to devices with either NPN or PNP outputs. There is no need to select the polarity; (5)A digital filter in the Unit can be set from 0 to 32 ms to reduce the influence of external noise; (6)Either a Fujitsu or MIL connector interface can be used; (7)Several models of Terminal Block Conversion Units are available, making it easy to connect to external devices.

Diagrams

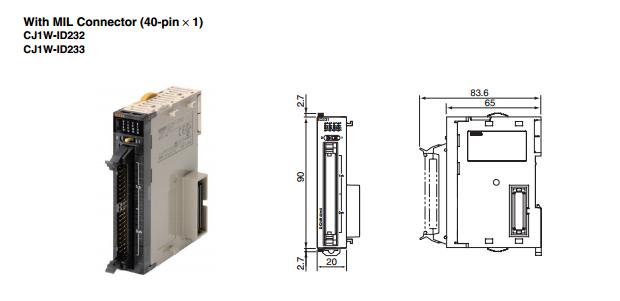

CJ1W-ID232 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CJ1W-ID232
CJ1W-ID232


TERM BLOCK PLC 24VDC 32POS IN

Data Sheet

0-1: $297.00
