Product Summary

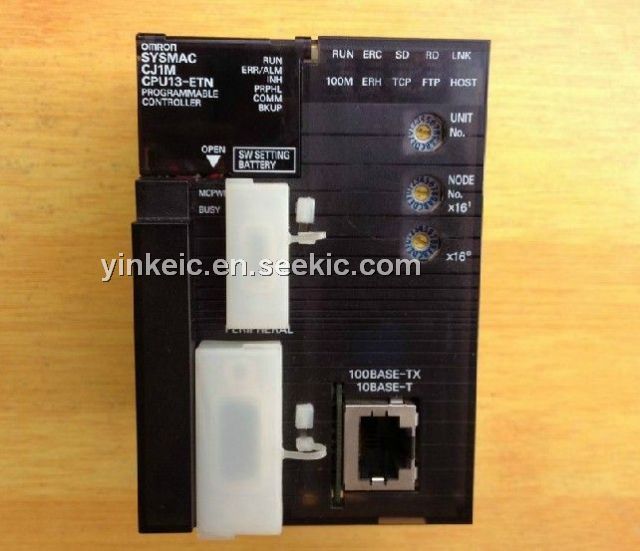

The CJ1M-CPU13-ETN is a Micro CJ1M CPU Unit. It is a SYSMAC CJ-series CPU Unit with the functionality of an Ethernet Unit.

Parametrics

CJ1M-CPU13-ETN absolute maximum ratings: (1)I/O capacity/ Mountable Units (Expansion Racks): 640 points/20Units(1 Expansion Racks max.); (2)Program capacity: 20K steps; (3)Data memory capacity: 32K words (DM: 32K words, EM: None); (4)LD instruction execution time: 0.1 μs; (5)Ethernet function: YES; (6)Current consumption(5V): 0.95A.

Features

CJ1M-CPU13-ETN features: (1)Compact 90 × 65 mm (H × D) dimensions are first class in the industry; (2)SYSMAC CJ-series CPU Unit with the functionality of an Ethernet Unit; (3)The CPU functional element has the same functionality as a CJ1M-CPU11/12/13. The enables effective usage of legacy applications; (4)High-capacity Memory Cards up to 128 MB can be installed, and used to backup the program and system settings, or log customer data; (5) The various protection functions provide improved security to protect valuable software resources and property.

Diagrams

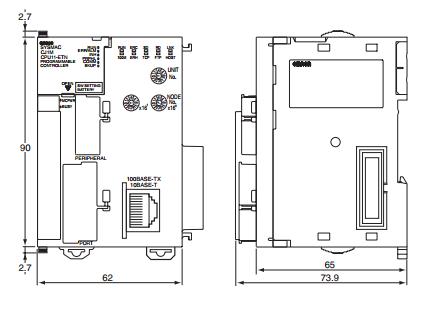

CJ1M-CPU13-ETN dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CJ1M-CPU13-ETN
CJ1M-CPU13-ETN

CPU 20K PROG 32K DATA W/ETHRNET
Data Sheet
0-1: $1,104.84
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CJ1MBRKOUT
CJ1MBRKOUT
Omron Industrial
Controllers CJ1M BreakoutTermal BenchTests
Data Sheet
0-1: $147.00
1-5: $134.40
CJ1M-CPU11
CJ1M-CPU11
Omron Industrial
Controllers CPU 5k PROG 32k DATA MEMORY
Data Sheet
0-1: $488.60
1-5: $456.80
CJ1M-CPU11-ETN
CJ1M-CPU11-ETN

CPU 5K PROG 32K DATA W/ETHRNET
Data Sheet
0-1: $788.04
CJ1M-CPU12
CJ1M-CPU12

CPU 10K PROG 32K DATA
Data Sheet
0-1: $495.00
CJ1M-CPU12-ETN
CJ1M-CPU12-ETN

CPU 10K PROG 32K DATA W/ETHRNET
Data Sheet
0-1: $946.44
CJ1M-CPU13
CJ1M-CPU13
Omron Industrial
Controllers CPU CJ1M 20k PR OG 32k DATA V3
Data Sheet
0-1: $707.39
1-5: $691.65
5-10: $667.80
