Product Summary
The MOM-0012NW300 is a Miniature Opto-Mechanical Switch. It provides the basis for spectrally efficient DWDM transmission utilizing dispersion tolerant modulation, channel monitoring, wavelength switching, remote power control and dynamic channel selection. It support a wide range of flexible functionalities at lower operational expenses for the Agile Optical Network. The applications of the MOM-0012NW300 are Configurable optical add/drop multiplexing, Protection switching, Network monitoring.
Parametrics
MOM-0012NW300 absolute maximum ratings: (1)Wavelength range: 1290 to 1330 nm and/or 1525 to 1610 nm; (2)Insertion loss: 1x1, 1x2 (2x1) <0.5 dB (0.3 dB typical), 2x2 (bypass) <0.6 dB (0.4 dB typical) ; (3）Polarization dependent loss: <0.07 dB (0.03 dB typical); (4)Crosstalk: >55 dB (65 dB typical); (5)Optical input power: <500 mW; (6)Repeatability: <±0.02 dB (cycle to cycle); (7)Switching time: <4 ms (2.5 ms typical); (8)Switching voltage: 5 ±10% V DC; (9)Maximum switching current: Latching 32 mA, Non-latching 46 mA; (10)Switch lifetime: 100 million cycles; (11)Cycle frequency: <10 Hz; (12)Nominal dimensions (L x W x H): 17.3 x 10.4 x 8.0 mm (0.68 x 0.41 x 0.32 inches).
Features
MOM-0012NW300 features: (1)1x1, 1x2 (2x1) and 2x2 (bypass) in both latching and non-latching configurations; (2)Hermetic packaging; (3)Unilateral input/output fiber location; (4)High durability.

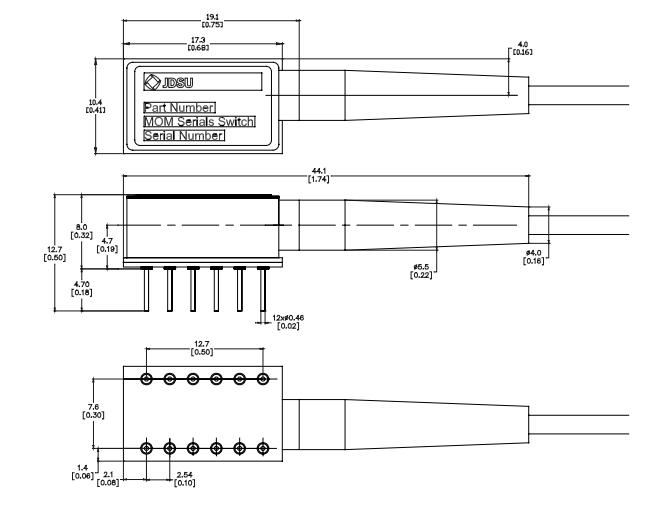

Diagrams
