Product Summary

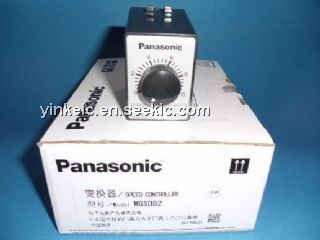

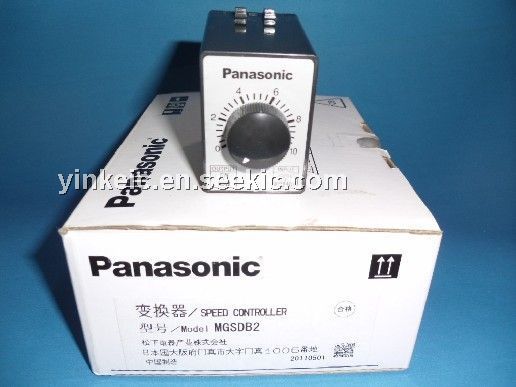

The MGSDB2 is a Panasonic Speed Controller. It vary speed of compact geared motors.

Parametrics

MGSDB2 absolute maximum ratings: (1)Supply Voltage: Single Phase 200 to 240 VAC; (2)Supply voltage tolerance: ±10% (at rated voltage); (3)Power frequency: 50/60Hz; (4)Rated input current: 1.0A; (5)Compatible motor output: 6 to 90W; (6)Speed control range: 50Hz: 90 to 1400 r/min, 60Hz: 90 to 1700 r/min; (7)Product weight: 80g.

Features

MGSDB2 features: (1)Internal speed changer; (2)Motor speed can be adjusted from the speed setting knob on the front panel; (3)Not necessary to install and connect an external speed changer to the controller; (4)Electric brake enables instantaneous stop; (5)Compact 8P plug-in configuration; (6)Variable installation options are available.

Diagrams

MGSDB2 dimension figure
