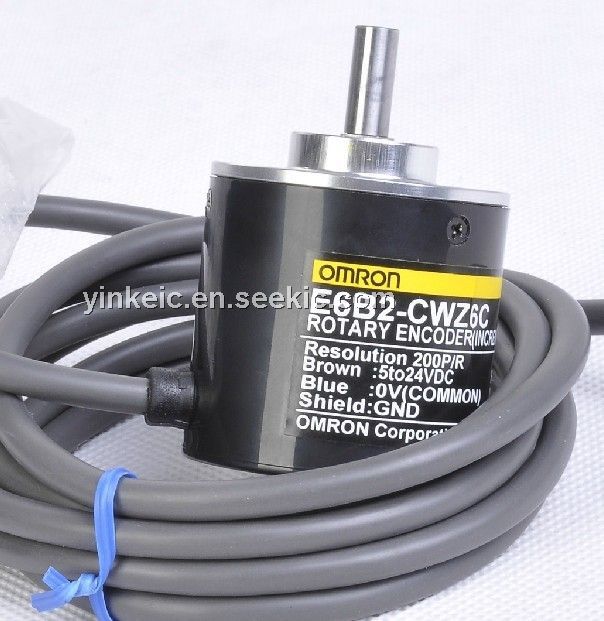

E6B2-CWZ6C

E6B2-CWZ6C, OMRON Rotary Encoder, 5 to 24 VDC, 80mA, 100kHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $25.00~26.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	26.00 / Piece
101 ~ 1000 :	25.50 / Piece
1001 ~ 10000 :	25.00 / Piece

PartNumber:: E6B2-CWZ6C

Brand:: Omron Electronics Inc - OMRON | D/C: 11+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Nici's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-13

From Other Seller

Part Number:E6B2-CWZ6C
US $25.00 - 26.00
E6B2-CWZ6C 2000P/R Encoder new&original

US $68.00 - 75.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The E6B2-CWZ6C is an OMRON Rotary Encoder. It is a New General-purpose Incremental-type Rotary Encoder.

Parametrics

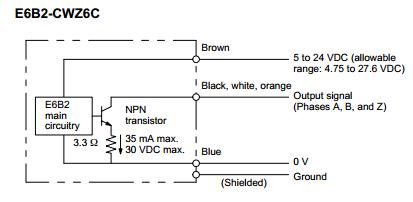

E6B2-CWZ6C absolute maximum ratings: (1)Power supply voltage: 5 to 24 VDC (allowable range: 4.75 to 27.6 VDC); (2)Current consumption: 80 mA max.; (3)Output configuration: Open collector; (4)Max. response frequency: 100 kHz; (5)Insulation resistance: 1,000 M min. (at 500 VDC) between carry parts and case; (6)Operating temperature: -10℃ to 70℃ (with no icing); (7)Storage temperature: -25℃ to 85℃ (with no icing); (8)Ambient humidity: Operating: 35% to 85% (with no condensation).

Features

E6B2-CWZ6C features: (1)A wide operating voltage range of 5 to 24 VDC (open collector model); (2)Resolution of 2,000 pulses/revolution in 40-mm housing; (3)Phase Z can be adjusted with ease using the origin indicating function; (4)A large load of 3 kgf (29.4 N) in the radial direction and 2 kgf (19.6 N) in the thrust direction is permitted; (5)The load short-circuit and reversed connection protecting circuit assures highly reliable operation; (6)A line driver output model is available. (Cable extends up to 100 m.).
