Product Summary

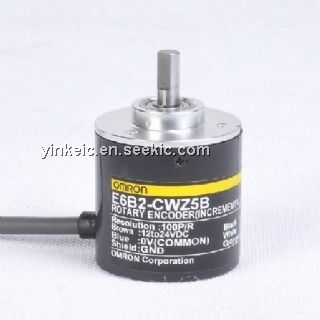

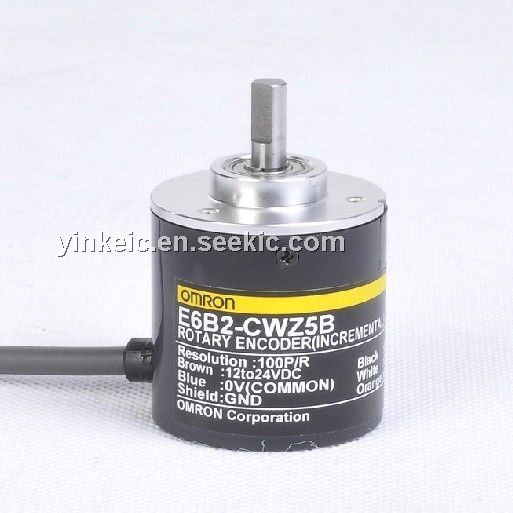

The E6B2-CWZ5B is an OMRON Rotary Encoder. It is a New General-purpose Incremental-type Rotary Encoder.

Parametrics

E6B2-CWZ5B absolute maximum ratings: (1)Power supply voltage: 12 VDC –10% to 24 VDC +15%; (2)Current consumption: 100 mA max.; (3)Output configuration: Open collector; (4)Max. response frequency: 50 kHz; (5)Insulation resistance: 1,000 M min. (at 500 VDC) between carry parts and case; (6)Operating temperature: -10℃ to 70℃ (with no icing); (7)Storage temperature: -25℃ to 85℃ (with no icing); (8)Ambient humidity: Operating: 35% to 85% (with no condensation).

Features

E6B2-CWZ5B features: (1)A wide operating voltage range of 5 to 24 VDC (open collector model); (2)Resolution of 2,000 pulses/revolution in 40-mm housing; (3)Phase Z can be adjusted with ease using the origin indicating function; (4)A large load of 3 kgf (29.4 N) in the radial direction and 2 kgf (19.6 N) in the thrust direction is permitted; (5)The load short-circuit and reversed connection protecting circuit assures highly reliable operation; (6)A line driver output model is available. (Cable extends up to 100 m.).

Diagrams

E6B2-CWZ5B dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
E6B2-CWZ5B 1000P/R 0.5M
E6B2-CWZ5B 1000P/R 0.5M


ENCODER ROTARY 5V 1000RESOL .5M

Data Sheet

0-1: $230.99
E6B2-CWZ5B 2000P/R 0.5M
E6B2-CWZ5B 2000P/R 0.5M


ENCODER ROTARY 5V 200RESOL .5M

Data Sheet

0-1: $301.46
E6B2-CWZ5B 600P/R 0.5M
E6B2-CWZ5B 600P/R 0.5M

Omron Industrial

Encoders Rotary Encoder

Data Sheet

0-1: $201.27
1-5: $196.79
5-10: $190.01
10-25: $183.22
E6B2-CWZ5B 360P/R 0.5M
E6B2-CWZ5B 360P/R 0.5M

Omron Industrial

Encoders Rotary Encoder

Data Sheet

0-1: $220.63
1-5: $215.72
5-10: $208.28
10-25: $200.84
E6B2-CWZ5B 500P/R 0.5M
E6B2-CWZ5B 500P/R 0.5M


ROTARY ENCODER

Data Sheet

0-1: $203.58
E6B2-CWZ5B 200P/R 0.5M
E6B2-CWZ5B 200P/R 0.5M


ENCODER ROTARY 5V 200RESOL .5M

Data Sheet

0-1: $270.14
