Product Summary

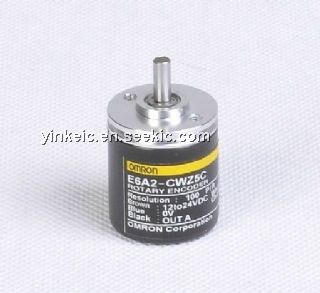

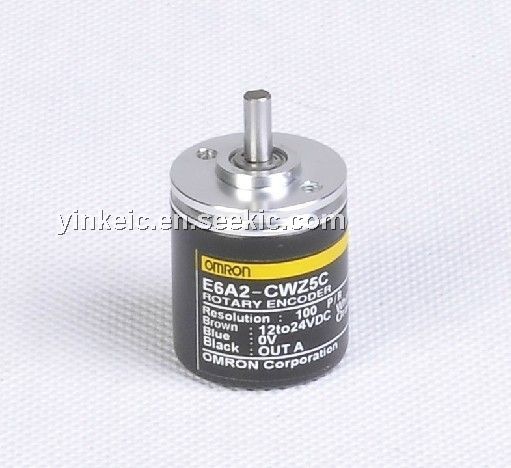

The E6A2-CWZ5C is an OMRON Rotary Encoder. It is Compact with an External Diameter of 25 mm.
Parametrics
E6B2-CWZ6C absolute maximum ratings: (1)Power supply voltage: 12 VDC–10% to 24 VDC+15%, ripple (p-p):5% max.; (2)Current consumption: 30 mA max.; (3)Output configuration: Open collector; (4)Max. response frequency: 30 kHz; (5) Rise and fall times of output: 1.0 μs max. (at control output voltage of 5 V and load resistance of 1 kΩ with 500-mm cable); (6)Operating temperature: -10℃ to 55℃ (with no icing); (7)Storage temperature: -25℃ to 80℃ (with no icing); (8)Ambient humidity: Operating: 35% to 85% (with no condensation).
Features
E6A2-CWZ5C features: (1)Various models available in series with supply voltages and output forms adaptable to various input devices; (2)Models with zero index function ideal for positioning applications; (3)High response frequency and noise immunity make encoders ideal for factory automation applications; (4)Ensures higher-than-ever measurement precision; (5)An additional series of models with 25 dia. ensuring a resolution of 500 rpm.

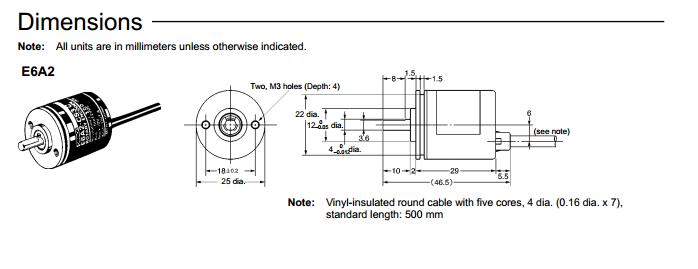

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 E6A2-CWZ5C 360P/R 0.5M |
Omron Industrial |
Controllers Encoder |
Data Sheet |
|
|
||||||||||||
|
E6A2-CWZ5C 500P/R 0.5M |
|
ENCODER |
Data Sheet |
|
|
||||||||||||
