Product Summary

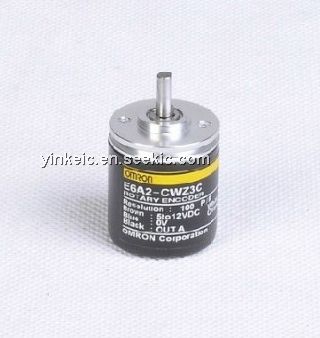

The E6A2-CWZ3C is an OMRON Rotary Encoder. It is Compact with an External Diameter of 25 mm.

Parametrics

E6A2-CWZ3C absolute maximum ratings: (1)Power supply voltage: 5 VDC–5% to 12 VDC+10%, ripple (p-p):5% max.; (2)Current consumption: 30 mA max.; (3)Output configuration: Open collector; (4)Max. response frequency: 30 kHz; (5) Rise and fall times of output: 1.0 μs max. (at control output voltage of 5 V and load resistance of 1 kΩ with 500-mm cable); (6)Operating temperature: -10℃ to 55℃ (with no icing); (7)Storage temperature: -25℃ to 80℃ (with no icing); (8)Ambient humidity: Operating: 35% to 85% (with no condensation).

Features

E6A2-CWZ3C features: (1)Various models available in series with supply voltages and output forms adaptable to various input devices; (2)Models with zero index function ideal for positioning applications; (3)High response frequency and noise immunity make encoders ideal for factory automation applications; (4)Ensures higher-than-ever measurement precision; (5)An additional series of models with 25 dia. ensuring a resolution of 500 rpm.

Diagrams

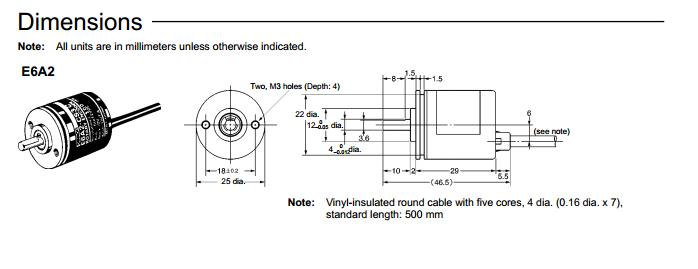

E6A2-CWZ3C dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

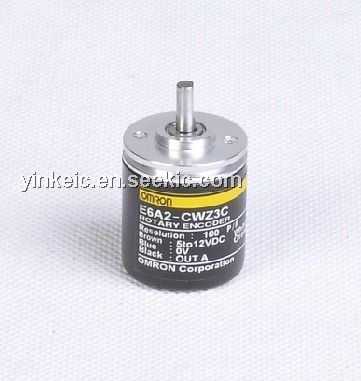

E6A2-CWZ3C 100P/R 0.5M
E6A2-CWZ3C 100P/R 0.5M

Omron Industrial

Controllers INC 5-12VDC OPEN ABZ PHASE

Data Sheet

0-1: $170.83
1-5: $156.60
5-10: $144.55
10-25: $134.23
E6A2-CWZ3C 100P/R 2M
E6A2-CWZ3C 100P/R 2M

Omron Industrial

Controllers ENCODER

Data Sheet

0-1: $199.30
1-5: $182.70
5-10: $168.65
10-20: $156.60
E6A2-CWZ3C 200P/R 0.5M
E6A2-CWZ3C 200P/R 0.5M

Omron Industrial

Controllers INC 5-12VDC OPEN AB Z PHASE

Data Sheet

0-1: $170.83
1-5: $156.60
5-10: $144.55
10-20: $134.23
