Product Summary

The E6A2-CS5C/30P/R is an OMRON Incremental Rotary Encoder. It is a Miniature Rotary Encoder for Positioning in Space-Confined Areas.

Parametrics

E6A2-CS5C/30P/R absolute maximum ratings: (1)Power supply voltage: 12 VDC–10% to 24 VDC+15%; max. 5% ripple; (2)Current consumption: 20 mA max.; (3) Output form: Voltage output; (4)Max. response frequency: 20 kHz; (5) Rise and fall times of output: 1.0μs max. (at control output voltage of 5 V and load resistance of 1 kΩ with 2 m cable); (6)Operating temperature: -10℃ to 55℃; (7)Storage temperature: -25℃ to 80℃; (8)Ambient humidity: Operating: 35% to 85% RH.

Features

E6A2-CS5C/30P/R features: (1)Wide variety of supply voltages and output forms to match input devices; (2)Models with zero index function ideal for positioning applications; (3)High resolution models (300 or 360 pulses per revolution)substantially improve measuring accuracy; (4)High response frequency and noise immunity make encoders ideal for factory automation applications.

Diagrams

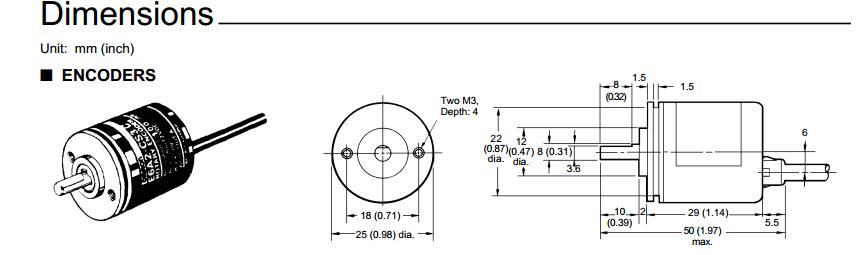

E6A2-CS5C/30P/R dimension figure
