Product Summary

The E6A2-CS3E is an OMRON Incremental Rotary Encoder. It is a Miniature Rotary Encoder for Positioning in Space-Confined Areas.

Parametrics

E6A2-CS3E absolute maximum ratings: (1)Power supply voltage: 5 VDC–5% to 12 VDC+10%; max. 5% ripple peak-to-peak; (2)Current consumption: 30 mA max.; (3) Output form: Voltage output; (4)Max. response frequency: 30 kHz; (5) Rise and fall times of output: 1.0 μs max. (at sink current of 10 mA with 2 m cable); (6)Operating temperature: -10℃ to 55℃; (7)Storage temperature: -25℃ to 80℃; (8)Ambient humidity: Operating: 35% to 85% RH.

Features

E6A2-CS3E features: (1)Wide variety of supply voltages and output forms to match input devices; (2)Models with zero index function ideal for positioning applications; (3)High resolution models (300 or 360 pulses per revolution)substantially improve measuring accuracy; (4)High response frequency and noise immunity make encoders ideal for factory automation applications.

Diagrams

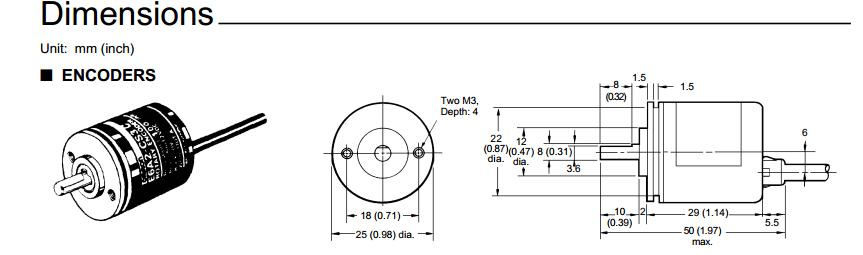

E6A2-CS3E dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
E6A2-CS3E 100P/R 0.5M
E6A2-CS3E 100P/R 0.5M
Omron Industrial
Controllers INC 5-12VDC VOLT A PHASE
Data Sheet
0-1: $161.33
1-5: $147.90
5-10: $136.52
10-20: $126.77
E6A2-CS3E 10P/R 0.5M
E6A2-CS3E 10P/R 0.5M
Omron Industrial
Controllers INC 5-12VDC VOLT A PHASE
Data Sheet
0-1: $161.33
1-5: $147.90
5-10: $136.52
10-20: $126.77
E6A2-CS3E 360P/R 0,5M
E6A2-CS3E 360P/R 0,5M
Omron Industrial
Controllers INC 5-12VDC VOLT A PHASE
Data Sheet
0-1: $161.33
1-5: $147.90
5-10: $136.52
10-20: $126.77
E6A2-CS3E 360P/R 2M
E6A2-CS3E 360P/R 2M

ENCODER
Data Sheet
0-1: $149.31
E6A2-CS3E 200P/R 0.5M
E6A2-CS3E 200P/R 0.5M

ENCODER ROTARY 5-12V 200RES .5M
Data Sheet
0-1: $133.11
E6A2-CS3E 300P/R 0.5M
E6A2-CS3E 300P/R 0.5M

ENCODER ROTARY 5-12V 300RES .5M
Data Sheet
0-1: $133.11
E6A2-CS3E 60P/R 0.5M
E6A2-CS3E 60P/R 0.5M

ENCODER ROTARY 5-12V 60RESOL .5M
Data Sheet
0-1: $133.11
