Product Summary

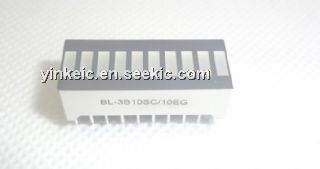

The BL-3B10SC/10EG is a LED Bargraph Indicator. It is producted by high-light LED chips and special processing of Semiconductor encapsulations Technology. Widely used in electronic display meters and instruments. Which is the ideal display device for the simulated indicators that need to be update.

Parametrics

BL-3B10SC/10EG absolute maximum ratings: (1)Peak forward current IF: 30mA to 100mA; (2)Reverse voltage VR: 5V; (3)Power dissipation PW: 0.2W to 0.3W; (4)Operating temperature range Tj: -25℃ to +70℃; (5)Storage temperature TSTG: -40℃ to +85℃; (6)Soldering time at 260℃: 3sec.

Features

BL-3B10SC/10EG features: (1)The use of sub-block scattering technlques, wide angle of view; (2)Clearly display, uniform brightness; (3)Antimagnetic, aselsmatic, Impact resistance; (4)High rellabllity, maximun mean life.

Diagrams

BL-3B10SC/10EG dimension figure
