Product Summary

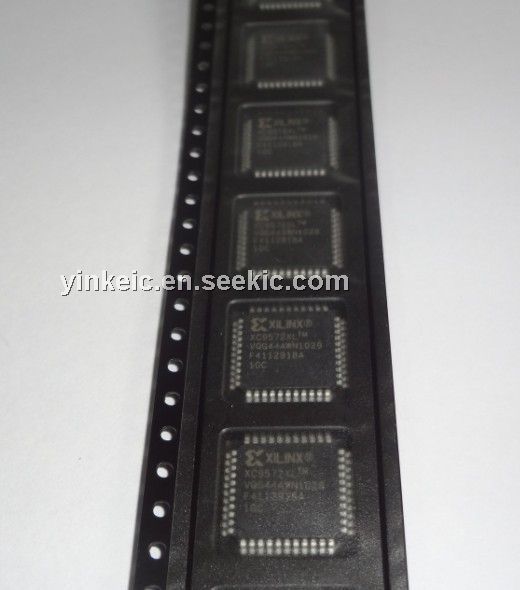

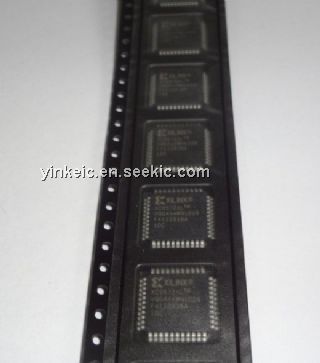

IC CPLD 72MCRCELL 10NS 44VQFP
Parametrics
<p>
</p>
Features
Features<br />
? 5 ns pin-to-pin logic delays<br />
? System frequency up to 178 MHz<br />
? 72 macrocells with 1,600 usable gates<br />
? Available in small footprint packages<br />
- 44-pin PLCC (34 user I/O pins)<br />
- 44-pin VQFP (34 user I/O pins)<br />
- 48-pin CSP (38 user I/O pins)<br />
- 64-pin VQFP (52 user I/O pins)<br />
- 100-pin TQFP (72 user I/O pins)<br />
- Pb-free available for all packages<br />
? Optimized for high-performance 3.3V systems<br />
- Low power operation<br />
- 5V tolerant I/O pins accept 5V, 3.3V, and 2.5V<br />
signals<br />
- 3.3V or 2.5V output capability<br />
- Advanced 0.35 micron feature size CMOS<br />
Fast FLASH? technology<br />
? Advanced system features<br />
- In-system programmable<br />
- Superior pin-locking and routability with<br />
Fast CONNECT? II switch matrix<br />
- Extra wide 54-input Function Blocks<br />
- Up to 90 product-terms per macrocell with<br />
individual product-term allocation<br />
- Local clock inversion with three global and one<br />
product-term clocks<br />
- Individual output enable per output pin<br />
- Input hysteresis on all user and boundary-scan pin<br />
inputs<br />
- Bus-hold circuitry on all user pin inputs<br />
- Full IEEE Standard 1149.1 boundary-scan (JTAG)<br />
? Fast concurrent programming<br />
? Slew rate control on individual outputs<br />
? Enhanced data security features<br />
? Excellent quality and reliability<br />
- Endurance exceeding 10,000 program/erase<br />
cycles<br />
- 20 year data retention<br />
- ESD protection exceeding 2,000V<br />
? Pin-compatible with 5V-core XC9572 device in the<br />
44-pin PLCC package and the 100-pin TQFP package<br />
WARNING: Programming temperature range of<br />
TA = 0° C to +70° C
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC9572XL-10VQG44C |
|
IC CPLD 72MCRCELL 10NS 44VQFP |
Data Sheet |
|
|
||||||||||||||||
