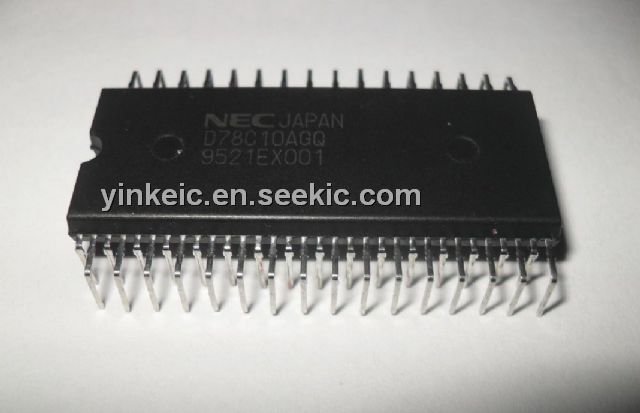

Product Summary
The UPD78C10AGQ is a ROM-less product of the UPD78C11A, and can directly address the external memory up to 64k bytes. The UPD78C10AGQ operated at low power consumption, because the UPD78C10AGQ has a CMOS construction. Also, the UPD78C10AGQ can hold data with low power consumption by using standby function.
Parametrics
UPD78C10AGQ absolute maximum ratings: (1) Power supply voltage VDD: -0.5 to +7.0V, AVDD: AVSS to VDD +0.5V, AVSS: -0.5V to +0.5V; (2) Input voltage VI: -0.5V to VDD +0.5V; (3) Output voltage VO: -0.5V to VDD +0.5V; (4) Output current low IOL: 4.0mA (All output pins) , 100mA (Total of all output pins) ; (5) Output current high IOH: -2.0mA (All output pins) , -50mA (Total of all output pins) ; (6) A/D converter reference input voltage VAREF: -0.5 to AVDD +0.3V; (7) Operating ambient temperature TA: -40 to +85°C; (8) Storage temperature Tstg: -65 to +150°C.
Features
UPD78C10AGQ features: (1) Abundant 159 types of instructions:87AD series instruction set, multiplication/division instructions, 16-bit operation instructions; (2) Instruction cycle: 0.8μs (at 15MHz operation) ; (3) On-chip RAM:256W×8; (4) High-precision 8-bit A/D converter: 8 analog inputs; (5) General-purpose serial interface: Asynchronous, synchronous, I/O interface mode; (6) Multi-function 16-bit timer/event counter; (7) Two 8-bit timers; (8) Interrupt function (external -3, internal -8) : Non-maskable interrupt×1, maskable interrupt×10; (9) Standby function:HALT mode, hardware/software STOP mode; (10) Zero-cross detection function: (2 inputs) .

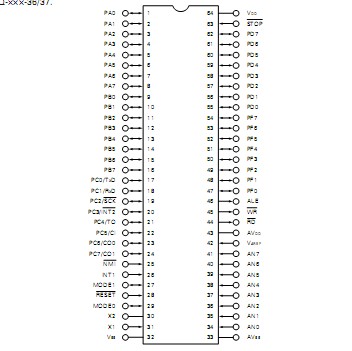

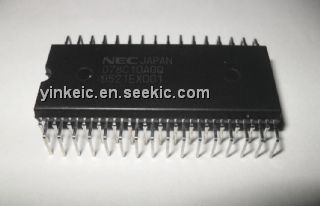

Diagrams
