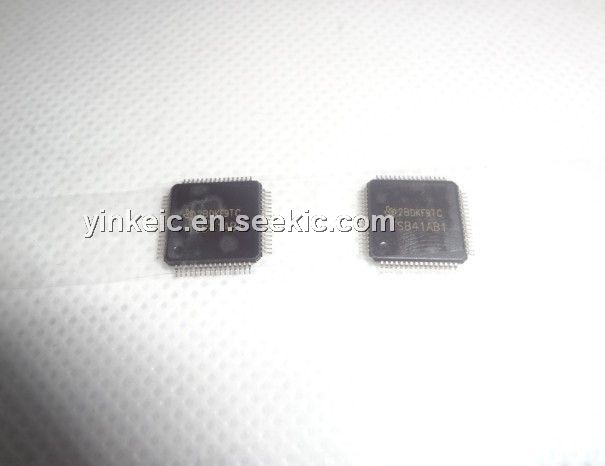

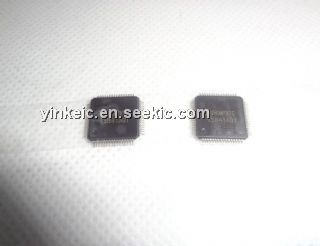

Product Summary

The TSB41AB1 provides the digital and analog transceiver functions needed to implement a one-port node in a cable-based IEEE 1394 network. The TSB41AB1 is designed to interface with a link layer controller (LLC) , such as the TSB12LV21, TSB12LV22, TSB12LV23, TSB12LV26, TSB12LV31,TSB12LV41, TSB12LV42, or TSB12LV01A. The TSB41AB1 requires only an external 24.576-MHz crystal as a reference. An external clock may be provided instead of a crystal.

Parametrics

TSB41AB1 absolute maximum ratings: (1) Supply voltage range, VDD: -0.3V to 4V; (2) Input voltage range, VI: -0.5V to VDD to +0.5V; (3) Output voltage range at any output, VO: -0.5V to VDD to +0.5V; (4) Continuous total power dissipation: See Dissipation Rating Table; (5) Operating free air temperature, TA: 0 to 70°C; (6) Storage temperature range, Tstg: -65 to +150°C; (7) Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260°C.

Features

TSB41AB1 features: (1) Fully Compliant With OpenHCI Requirements; (2) Provides One IEEE 1394a-2000 Fully Compliant Cable Port at 100/200/400 Megabits Per Second (Mbits/s) ; (3) IEEE 1394a-2000 Compliant Common Mode Noise Filter on Incoming TPBIAS; (4) Software Device Reset (SWR) ; (5) Industry Leading Low Power Consumption; (6) Ultralow-Power Sleep Mode; (7) Single 3.3-V Supply Operation; (8) Low Cost 24.576-MHz Crystal Provides Transmit, Receive Data at 100/200/400 Mbits/s, and Link-Layer Controller Clock at 49.152MHz.

Diagrams

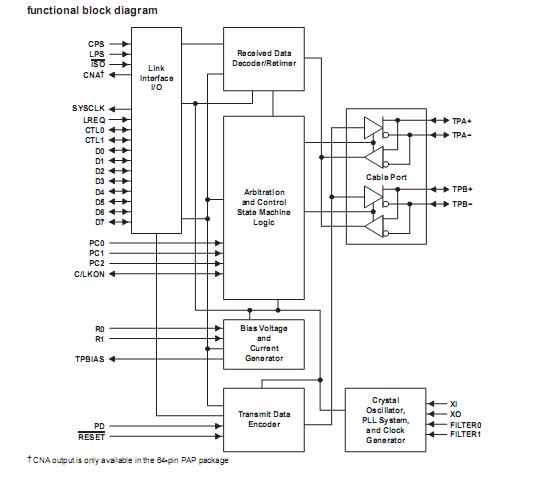

TSB41AB1 Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TSB41AB1
TSB41AB1

Other


Data Sheet

Negotiable
TSB41AB1GQE
TSB41AB1GQE

Texas Instruments

Buffers & Line Drivers One-Port Cable Xcvr/Arbiter

Data Sheet

0-180: $1.62
180-250: $1.41
250-500: $1.20
500-1000: $1.19
TSB41AB1PAP
TSB41AB1PAP

Texas Instruments

Buffers & Line Drivers One-Port Cable Xcvr/Arbiter

Data Sheet

0-1: $2.21
1-25: $2.02
25-100: $1.62
100-250: $1.41
TSB41AB1PAPG4
TSB41AB1PAPG4

Texas Instruments

Bus Transceivers One-Port Cable Xcvr/Arbiter

Data Sheet

0-1: $2.19
1-25: $1.84
25-100: $1.62
100-250: $1.41
TSB41AB1PHP
TSB41AB1PHP

Texas Instruments

Buffers & Line Drivers One-Port Cable Xcvr/Arbiter

Data Sheet

0-1: $2.21
1-25: $2.02
25-100: $1.62
100-250: $1.41
TSB41AB1PHPG4
TSB41AB1PHPG4

Texas Instruments

Bus Transceivers One-Port Cable Xcvr/Arbiter

Data Sheet

0-1: $2.19
1-25: $1.84
25-100: $1.62
100-250: $1.41
TSB41AB1ZQE-64
TSB41AB1ZQE-64

Texas Instruments

Buffers & Line Drivers One-Port Cable Xcvr/Arbiter

Data Sheet

0-1: $2.21
1-25: $1.84
25-100: $1.62
100-250: $1.41
