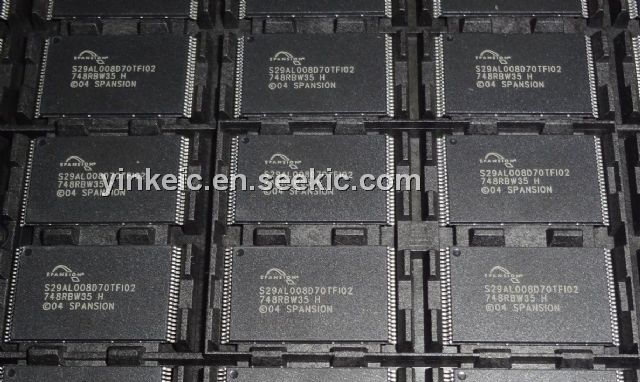

Product Summary

S29AL008D70TFI020H is an 8 Mbit, 3.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The S29AL008D70TFI020H is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. The S29AL008D70TFI020H is manufactured using 200nm process technology of Spansion, and offers all the features and benefits of the Am29LV800B, which was manufactured using 0.32μm process technology.

Parametrics

S29AL008D70TFI020H absolute maximum ratings: (1) Storage Temperature Plastic Packages: -65 to +150°C; (2) Ambient Temperature with Power Applied: -65 to +125°C; (3) Voltage with Respect to Ground Vcc: -0.5V to +4.0V; (4) A9, OE#, and RESET#: -0.5V to +12.5V; (5) All other pins: -0.5V to Vcc +0.5V; (6) Output Short Circuit Current: 200mA.

Features

S29AL008D70TFI020H features: (1) Single power supply operation; (2) Manufactured on 200nm process technology; (3) Flexible sector architecture; (4) Unlock Bypass Program Command; (5) Top or bottom boot block configurations available; (6) Embedded Algorithms; (7) Compatibility with JEDEC standard.

Diagrams

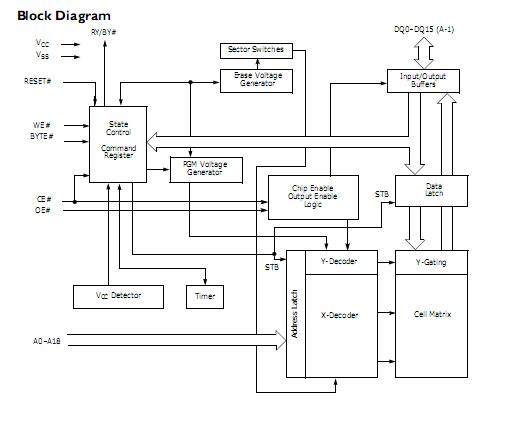

S29AL008D70TFI020H Block Diagram
