Product Summary

FSA2567MPX is a bi-directional, low-power, dual double-pole, double-throw (4PDT) analog switch targeted at dual SIM card multiplexing. The is optimizedfor switching the WLAN-SIM data and control signals and dedicates one channel as a supply-source switch. Applications of the FSA2567MPX include: Cell phone, PDA, Digital Camera, and Notebook and LCD Monitor, TV, and Set-Top Box.

Parametrics

FSA2567MPX ratings: (1) Low On Capacitance for Data Path: 10pF Typical; (2) Low On Resistance for Data Path: 6Ω Typical; (3) Low On Resistance for Supply Path: 0.4Ω Typical; (4) Low Power Consumption: 1μA Maximum; (5) 8kV ESD Rating, >16kV Power/GND ESD Rating (6) Operating Temperature Range: -40 to +85°C.

Features

FSA2567MPX features: (1) Low On Capacitance for Data Path: 10pF Typical; (2) Low On Resistance for Data Path: 6Ω Typical; (3) Low On Resistance for Supply Path: 0.4Ω Typical; (4) Low Power Consumption: 1μA Maximum; (5) Wide -3db Bandwidth: >160MHz ; (6) Packaged in: Pb-free 16-Lead MLP, Pb-free 16-Lead UMLP (1.8x2.6mm) ; (7) 8kV ESD Rating, >16kV Power/GND ESD Rating.

Diagrams

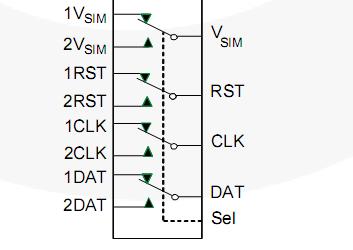

FSA2567MPX Circuit

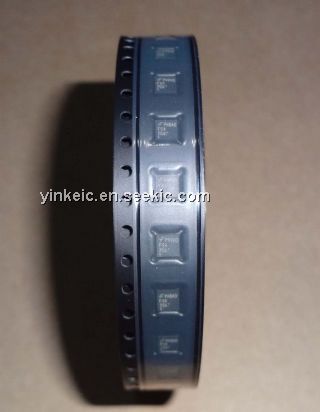

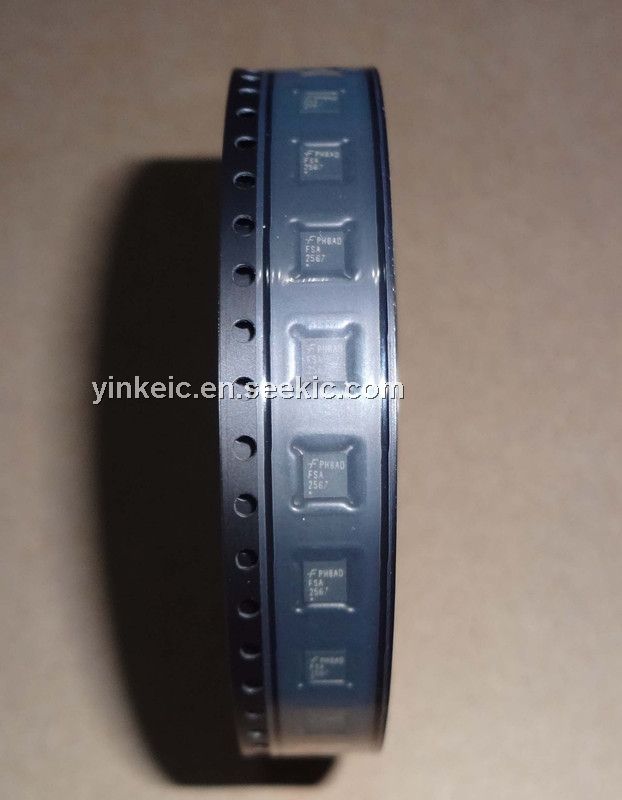

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FSA2567MPX
FSA2567MPX
Fairchild Semiconductor
Analog Switch ICs Dual SIM Card Low Power
Data Sheet
0-1: $1.05
1-25: $0.81
25-100: $0.73
100-250: $0.66
