Product Summary

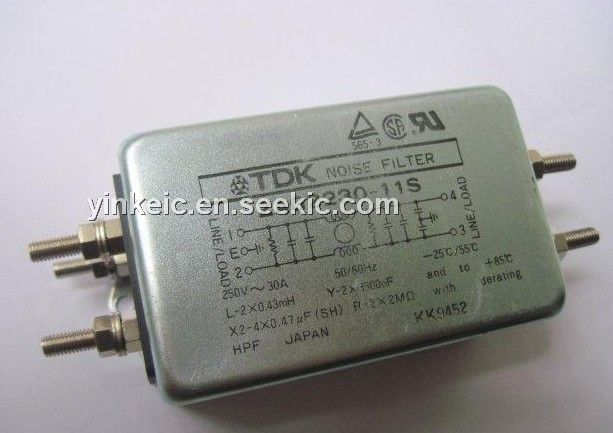

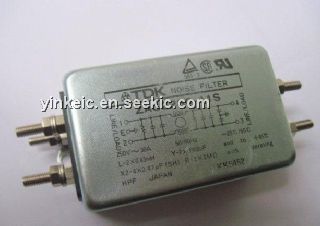

ZAG2230-11S

Features

FEATURES
? The ZAG-11S series are EMC filters designed to prevent malfunctions
in microcomputers. They employ advanced amorphous magnetic
materials in the common mode choke coil to achieve superior
performance characteristics.
? They provide substantial attenuation of high-voltage pulses in
power supply lines, exhibiting more than 20dB attenuation for a
2kV, 1μs pulse.
? Leakage current is maintained at less than 0.75mA.
? These filters are highly reliable and provide stable attenuation
performance even in harsh environments, where the filters may
be subjected to humidity, vibration, and shock.
? Efficient manufacturing makes these filters highly cost-effective.
? It is a product conforming to RoHS directive.
