Product Summary

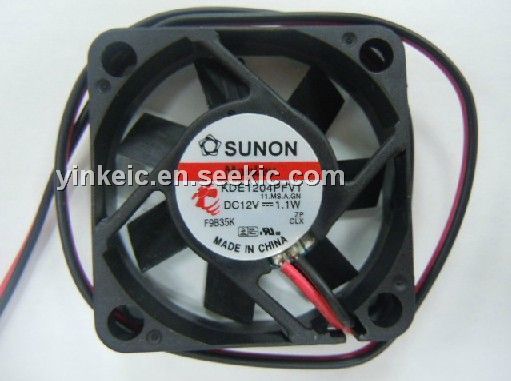

The KDE1204PFV1-A.GN is a DC Fan.

Parametrics

KDE1204PFV1-A.GN absolute maximum ratings: (1) Rated Voltage: 12V; (2)Power Current: 0.09A; (3)Power Consumption: 1.1W; (4)Speed: 7000 RPM; (5) Air flow: 8.0 CFM; (6)Static Pressure: 0.19 Inch-H2O; (7)Noise: 32 dB(A); (8)Weight: 17g.

Diagrams

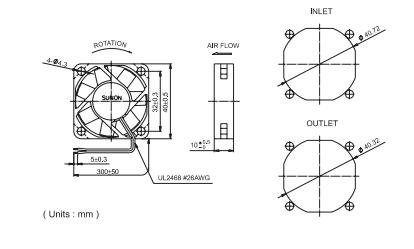

KDE1204PFV1-A.GN dimension figure
