Product Summary

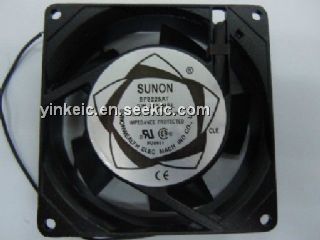

2092HBL is an AXIAL AC FAN.

Parametrics

109R0824H402 absolute maximum ratings: (1)Rated Voltage: 220/240 VAC 50/60 HZ; (2)Operating Voltage Range: 185-245 VAC; (3)Starting Voltage: 185 VAC(25℃ POWER ON/OFF); (4)Rated Speed: 2350/2850 RPM ± 10%; (5)Air Delivery: 30/37 CFM; (6)Static Pressure: 0.13/0.19 Inch-H2O; (7)Rated Current: 0.07/0.06 AMP; (8)Input Power: 14.5/14 WATTS; (9)Noise Level: 37/40 dB(A); (10)Direction of Rotation : Counter-clockwise viewed front fan blade; (11)Motor Protection: Impedance Protected.; (12)Operating Temperature: -10 to +70 Deg.C; (13)Storage Temperature: -40 to +70 Deg.C; (14)Bearing System: Precise ball bearing system; (15)Weight: 280g.

Features

109R0824H402 features: (1)Motor Design: Reliable Shaded-Pole Motor Construction; (2)Insulation Resistance: 500Megohms minimum at 500 VDC; (3)Dielectric Strength: 1500 VAC for one minute; (4)Motor Protection: Impedance protected; (5)Noise Level: Measured in a semi-anechoic chamber with background noise level below 15 dB(A). The fan is running in free air with microphone at a distance of one meter from the fan intake; (6)Air Performance: Measured by a double chamber. The value are recorded when the fan speed is stabilized at rated voltage.

Diagrams

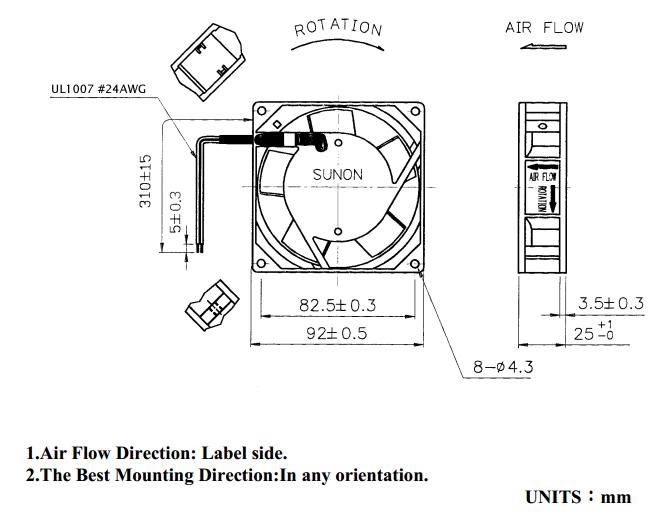

2092HBL dimension figure
