Product Summary

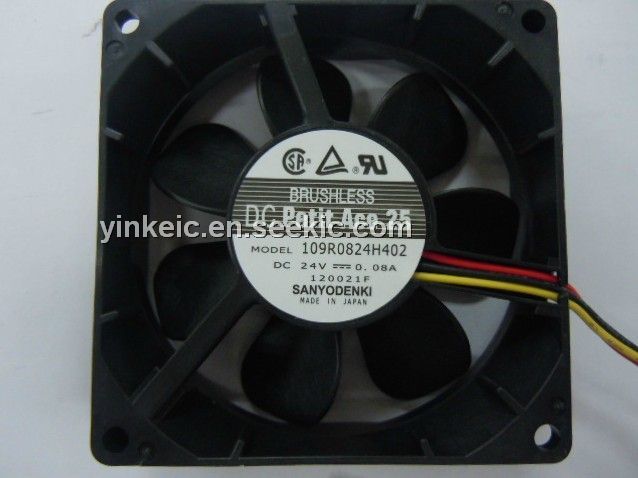

The 109R0824H402 is a DC Fan.

Parametrics

109R0824H402 absolute maximum ratings: (1)Rated Voltage: 24V; (2)Operating Voltage Range: 12V to 27.6V; (3)Rated Current: 0.07A; (4)Rated Input: 1.68W; (5)Rated Speed: 2900min-1; (6)Air Flow: 1.03m3/min; (7)Operating Temperature Range: -10℃ to +70℃.

Features

109R0824H402 features: (1)Material: Frame, Impeller:Plastics; (2)Life Expectancy: Varies for each model (Survival rate: 90% at 60℃,rated voltage,and continuously run in a free air state); (3)Motor Protection SystemL: Current blocking function (with reverse polarity protection); (4)Dielectric Strength: 50/60 Hz, 500VAC, 1 minute (between lead conductor and frame); (5)Noise Measurement Method: Measured at 1m from the air inlet; (6)Operating Temprature Range: Varies for each model (Non-condensing); (7)Mass: 170g.

Diagrams

109R0824H402 dimension figure
