Product Summary

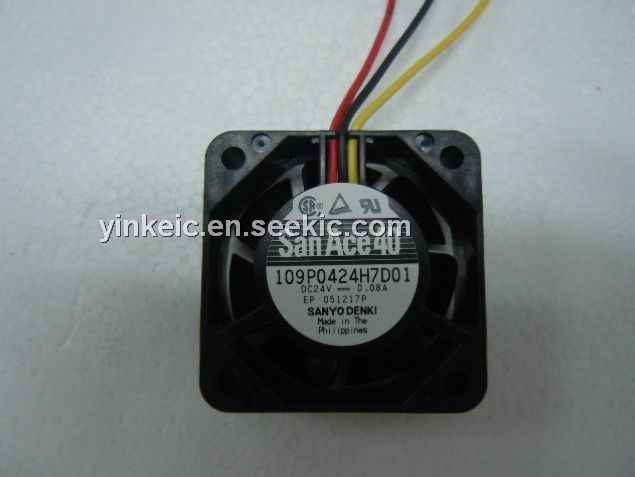

109P0424H7D01 is a DC FAN.

Parametrics

109P0424H7D01 absolute maximum ratings: (1)Rated Voltage: 24V; (2)Operating Voltage Range: 20.4V to 27.6V; (3)Rated Current: 0.08A; (4)Rated Input: 1.92W; (5)Rated Speed: 7700min-1; (6)Air Flow: 0.18 m3/min; (7)Operating Temperature Range: -10℃ to +70℃

Features

109P0424H7D01 features: (1)Material: Frame, Impeller:Plastics; (2)Life Expectancy: Varies for each model (Survival rate: 90% at 60℃,rated voltage,and continuously run in a free air state); (3)Motor Protection SystemL: Current blocking function (with reverse polarity protection); (4)Dielectric Strength: 50/60 Hz, 500VAC, 1 minute (between lead conductor and frame); (5)Operating Temprature Range: Varies for each model (Non-condensing); (6)Mass: 19g 10mm thick 32g 15mm thick.
